| Place of Origin: | NINGBO |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001:2008 |
| Model Number: | MS11 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Model NO.: | MS11 | Trademark: | Helm Tower |
|---|---|---|---|
| HS Code: | 8412291000 | Color: | Customized |
| High Light: | Customized Hydraulic Wheel Motor,Ms11 Hydraulic Wheel Motor,Radial Piston Type Hydraulic Motor |
||

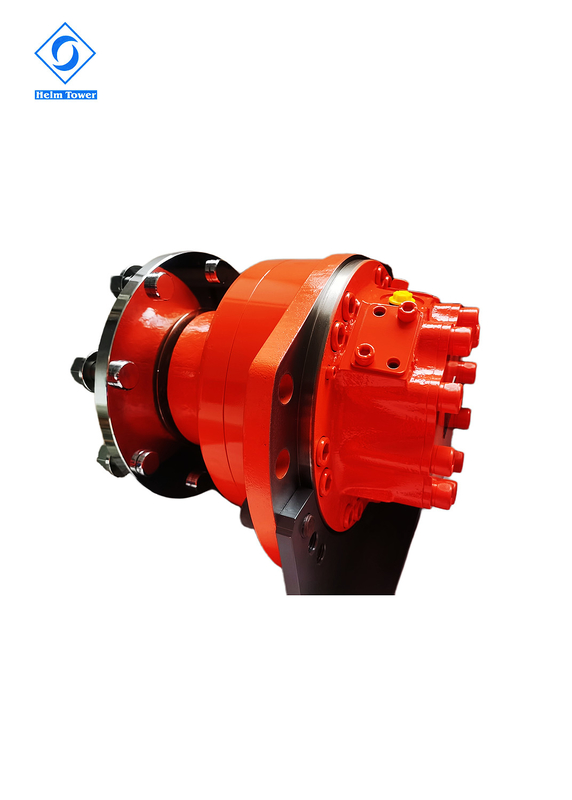

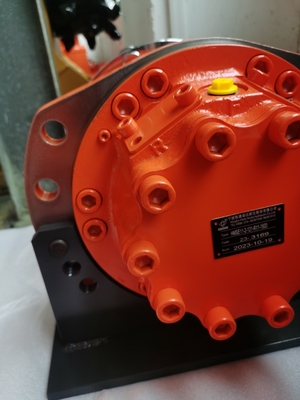

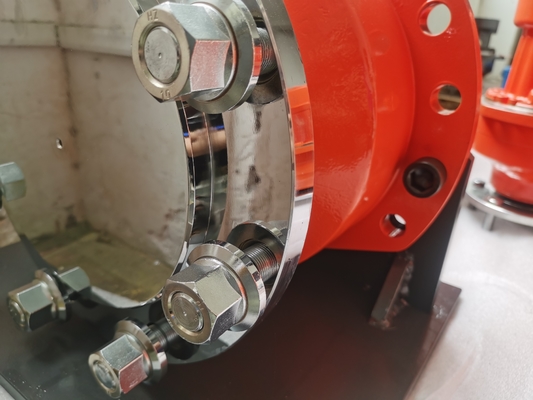

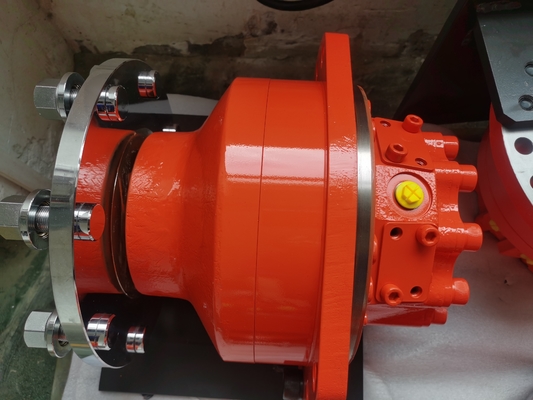

Poclain Ms11 Hydraulic Wheel Motor For VOLVO
Product Features:
Poclain MS11 Hydraulic Wheel Motor:
1). Radial piston type.
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Applications:
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor.
Farming Machinery: Spray Machine.
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Marine Machinery: Marine Deck Crane.
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
| Pressure discrepancy 10MPa Torque (N. m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N. m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
