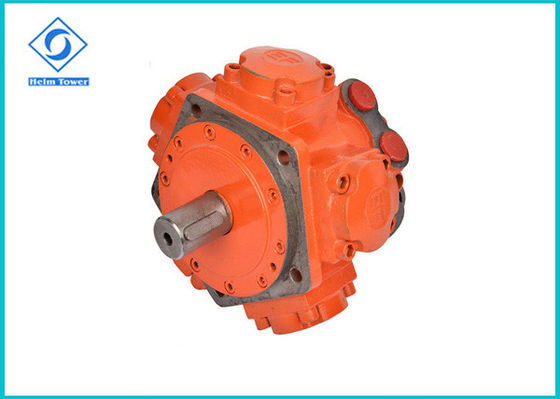

Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency

Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency

    • Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency
    • Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency
    • Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency
    • Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency
  • Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: Helm Tower
    Certification: ISO9001:2008
    Model Number: JMDG series

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: wooden case
    Delivery Time: 3-7 days
    Payment Terms: L/C, T/T
    Supply Ability: 200 sets one month
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Color: Customer Required
    Performance: Replace Originals Very Well Material: Iron

    Standard JMDG Series Radial Piston Motor With High Mechanical Efficiency



    Features:



    Perfect replace:
    Intermot IAM/NHM;JMDG;Calzoni;Staffa STF;and other brand...

    low speed high torque motor with crankshaft and connecting rod,produced in strict accordance with the technology and standard of ltaly.
    Meanwhile,we also employ new technoloqy to improve the motor performance according to the market requirements.The main features include:
    1.Low noise due to an eccentric crankshaft and low excitation frequency of five-piston design;
    2.Revolve steadily under very low speed due to high starting torque and good low-speed stability;
    3.Good reliability and less leakage due to the patented flat compensation distributor,spcial sealing between piston and plunger bushing guarantees higher volumetrical effvciency;
    4.High mechanical efficency due to roller bearing between crankshaft and connecting rod;
    5.Reversible rotation,and the output shaft can bear certain extermal force from both radial and axial direditons;
    6.High power-mass ratio,small volume and light weight.


    Displacement Diagram:

    TYPE DISPLACEMENT
    ml/r
    PEAK PRESSURE
    Mpa

    WORKING PRESSURE

    (Cont. )Mpa

    TORQUE

    (Cont. )N. m

    N. m/Mpa SPEED RANGE
    r/min

    MAX POWER

    (Cont. )Kw

    WEIGHT
    Kg
    JMDG160-12500 13335 25 20 39433 1972 0.3-80 220 1000
    JMDG160-16000 16040 20 16 37948 2554 0.3-63 220 1000
