Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure

Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure

  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
  • Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure
Product Details:
Place of Origin: CHINA
Brand Name: Helm Tower Hydraulic
Certification: ISO9001
Model Number: MCR05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 10days
Payment Terms: L/C
Supply Ability: 450 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Color: Follow Customer's Requirement
Application: Machinery Pressure: High Pressure
Delivery Time: 5-7 Days Package: Wooden Case
High Light:

radial piston hydraulic motor

,

axial piston hydraulic motor

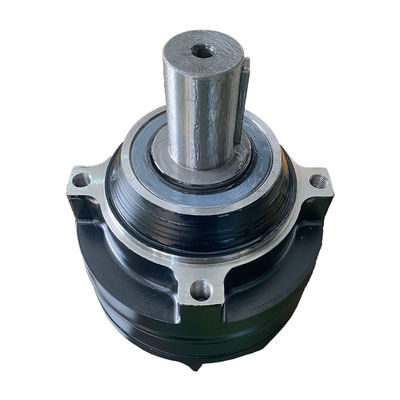

Rexroth MCR5 MCR05 Mcre05 Final Drive Hydraulic Motor and Parts for Nam Thong NFB63c



Rexroth MCR05/MCRE05 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.

Type MCR05-380 MCR05-470 MCR05-520 MCR05-565 MCR05-680 MCR05-750
Displacement(ml/r) 380 470 520 565 680 750
Continuous output power(kw) 29 29 29 29 35 35
Differential pressure 10Mpa torque(Nm) 604 748 827 899 1082 1194
Rated torque(Nm) 1419 1756 1942 2111 2540 2802
Pressure rating(Mpa) 25 25 25 25 25 25
Max. pressure(Mpa) 40 40 40 40 40 40
Max. speed(rpm) 220 220 220 220 220 170



Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure 0Final Drive Lightweight Hydraulic Motor Slow Speed Hydraulic Motors High Pressure 1
