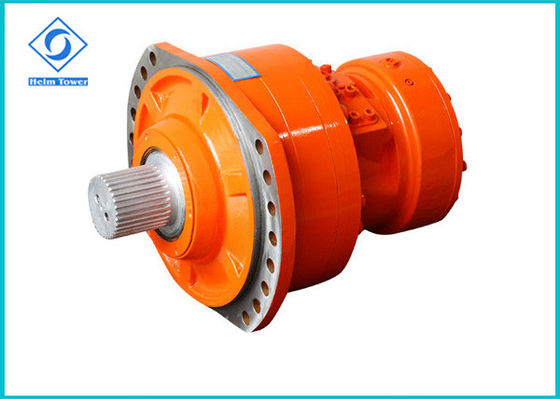

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

  • Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
  • Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
  • Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
  • Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
Product Details:
Place of Origin: China
Brand Name: Helm Tower
Certification: ISO
Model Number: MS25
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Export plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C
Supply Ability: 200pcs per month
Contact Now
Detailed Product Description
Performance: 100% Replace To Poclain Motor Displacement: 2004 Ml/r; 2498 Ml/r; 2752 Ml/r; 3006 Ml/r;
Drive Shaft: Wheel /spline Shaft / Key Shaft Brake: With Brake / Without Brake
Speed: Single Speed / Double Speed Color: Black, Grey, Blue, Red, Orange
Max.Power: 90 Kw
High Light:

radial piston hydraulic motor

,

industrial hydraulic motor

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

Features:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

MS25 series Displacement Diagram:



Code
MS25
Displacement Group
8
0
1
2
Displacement(ml/r)
2004
2498
2752
3006
Theoretical torque at 10 MPa(N.m)
3186
3972
4376
4780
Rated speed(r/min)
100
80
63
63
Rated pressure(Mpa)
25
25
25
25
Rated torque(N.m)
6550
8200
9000
9850
Max pressure(Mpa)
31.5
31.5
31.5
31.5
Max torque(N.m)
8100
10100
11150
12150
Speed range(r/min)
0-145
0-137
0-125
0-115
Max power(kW)
90



MS25 Applications:

Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.


Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor 0Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor 1




MS25 Connection Dimension
Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor 2


High precision testing facilities and experienced inspectors.
Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor 3
