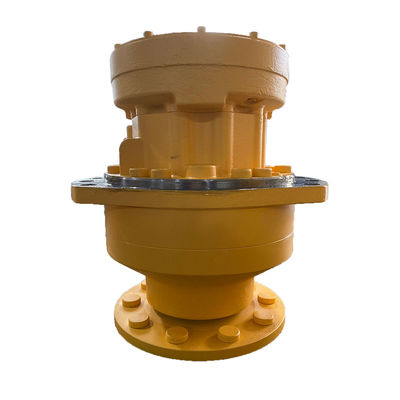

High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation

High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation

  • High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation
High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-160 R/min Torque: 3127-4704 N.m
Rated Pressure: 25 MPa Max. Pressure: 40 MPa
High Light:

two speed hydraulic motor

,

radial hydraulic motor

High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation



Features:



MS11 Hydraulic Piston Motor

1) Radial piston type,low speed,high torque
2) Modular design, High efficiency

3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,

5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



MS11 Displacement Diagram



Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150

High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation 0



Applications:



Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.

Minging: mini road header, scraper, heavy duty handling car coal mine drill.

Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,

Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,

Industry: process, paper, foundry, food.

Marines: fishing, harbor,

Transportation: material, heavy duty, on-highway.



High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation 1High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation 2





MS11 Connection Diagram

High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation 3



High precision testing facilities and experienced inspectors.



High Efficiency Two Speed Hydraulic Motor Smooth Low Speed Operation 4
