| Place of Origin: | NINGBO |
| Brand Name: | Helm Tower |
| Certification: | ISO9001/RoHS |
| Model Number: | MCR03 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | Standard Cases |
| Delivery Time: | 15 days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 750 |
| Features: | Low Noise & Long Life | Pressure: | 45 Mpa |
|---|---|---|---|
| Applicable: | Construction Machinery | Speed: | High Speed |
| Product Name: | Hydraulic Motor | Noise: | Low Noise |
| New: | 100% New | ||
| Highlight: | lightweight hydraulic piston motor,hydraulic vane pump motor,compact hydraulic piston motor |
||
| Displacement (ml/rpm) | Rated Torque (N.m) |
Maximum pressure (MPa) |
Speed range (rpm) |
Rated speed (rpm) |
Maximum Torque (N.m) |
| 160 | 635 | 45 | 0-670 | 250 | 1018 |
| 225 | 892 | 45 | 0-475 | 160 | 1431 |
| 255 | 1012 | 45 | 0-420 | 160 | 1622 |
| 280 | 1112 | 45 | 0-385 | 125 | 1781 |
| 325 | 1290 | 45 | 0-330 | 160 | 2067 |
| 365 | 1450 | 45 | 0-295 | 125 | 2321 |
| 400 | 1590 | 45 | 0-270 | 125 | 2544 |

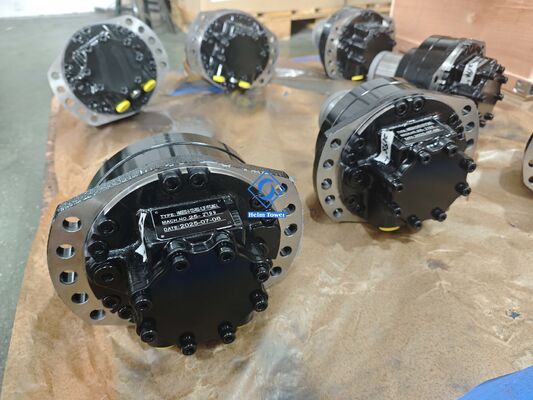

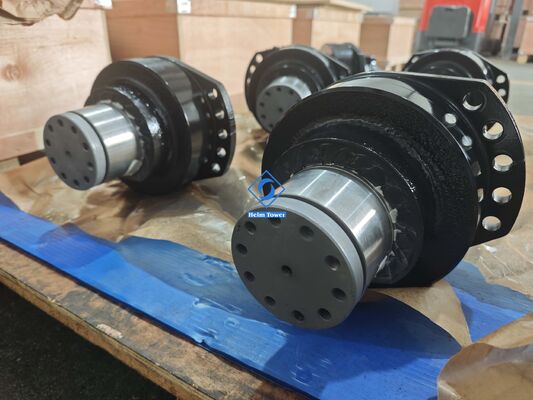

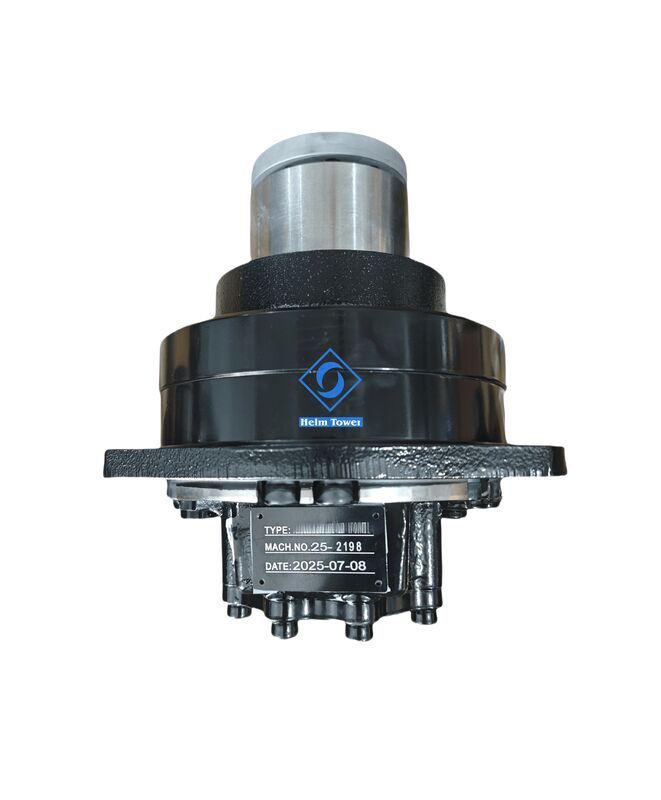

03 Hydraulic Piston Motor:
Low speed Large torque Hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
