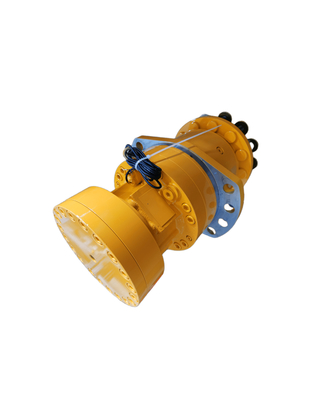

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery

  • Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery
  • Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery
  • Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery
  • Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery
Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS08/MSE08
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Hydraulic Piston Motor Speed: 0-160 R/min
Torque: 1858-4960N.m Rated Pressure: 25 MPa
Max. Pressure: 31.5 MPa Color: Customized
Max Pressure: 31.5 MPa Speed Range: 0-100 R/min
Material: Steel Feature: Low Speed High Torque
Weight: 3.5 Kg Condition: New
Warranty: 1 Year Colour: Customized
High Light:

Low Hydraulic Motor

,

Forest Machinery Hydraulic Motor

,

High Torque Hydraulic Motor

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor for Forest Machinery

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 0

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 1

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 2

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 3

Features:



MS08/MSE08  series hydraulic motor:



This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.





Applications:



1.Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.

2.Farming Machinery: Spray Machine.

3.Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.

4.Special Vehicles: Fire Engine.

5.Forest Machinery: Stumper, Loader, Forest Felling Machine.



MS08 Displacement Diagram



Type

Displacement

MS08-8 MS08-9 MS08-0 MS08-1 MS08-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 627 313 702 351 780 390 857 428 934 467
Max power(kw) 36 24 36 24 36 24 36 24 36 24

Pressure discrepancy

10MPa Torque (N.m)

937 459 1049 514 1166 571 1281 628 1396 684
Rated torque(N.m) 2343 2623 2914 3202 3490
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 70 70 70 65 65
Speed range(r/min) 0-170 0-170 0-170 0-155 0-140







Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 4






Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 5Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 6

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 7





Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 8Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 9



MS08 Connection Dimension

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 10

Workshop View:

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 11

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 12

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 13

Quality Control:

Smooth Running Low Speed High Torque MS08/MSE08 Hydraulic Motor For Forest Machinery 14
