| MOQ: | 1 PCS |
| Price: | Negotiable |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 7 working days |
| Supply Capacity: | 500 sets per month |

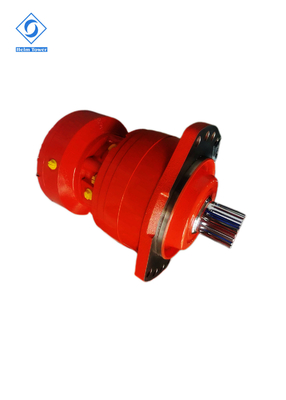

Sourcing Hydraulic Piston Motor for Products (Ms08/Mse08) CHINA Supplier
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency
3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,
5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
| Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
| Pressure discrepancy 10MPa Torque (N. m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N. m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
