| Place of Origin: | NINGBO |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001:2008 |
| Model Number: | MS125 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 1000 sets per month |
| Type: | Hydraulic Motors | Material: | Cast Iron |
|---|---|---|---|
| Color: | Customer's Request | Application: | Machinery,agriculture,engneering,mining |
| High Light: | Construction Orbit Hydraulic Motor,Ms125 Hydraulic Piston Motor,Mining Machinery Hydraulic Piston Motor |
||

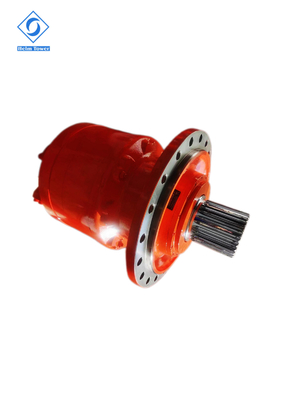

Ms125 Hydraulic Piston Motor for Mining and Construction Machinery
Poclain MS125 series piston motors
HMS125
Displacement Group |
8 |
0 |
2 |
Displacement (ml/r) |
10000 |
12500 |
15000 |
Theoretical Torque at 10Mpa (N.m) |
15900 |
19875 |
23850 |
Rated Speed (r/min) |
45 |
35 |
28 |
Rated Pressure (Mpa) |
25 |
25 |
25 |
Rated Torque (N.m) |
32850 |
41100 |
49300 |
Max. Pressure (Mpa) |
31.5 |
31.5 |
31.5 |
Max. Torque (N.m) |
40500 |
50650 |
60800 |
Speed Range (r/min) |
0-50 |
0-40 |
0-30 |
Max. Power (kw) |
Standard displacement is 240KW,variable displacement priority rotation 160KW |
||
