| Place of Origin: | NINGBO |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001:2008 |
| Model Number: | MCR03/MCRE03 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/P, D/A, L/C |
| Control: | Manual/Automatic | Material: | Aluminum Alloy/Cast Iron |
|---|---|---|---|
| Temperature: | Normal | Type: | Hydraulic Piston Motor |
| Color: | Customized | Weight: | 31.4 |
| High Light: | Automatic Hydraulic Radial Piston Motor,Cast Iron Radial Hydraulic Motor,Hydraulic Piston Motor MCR03 |
||

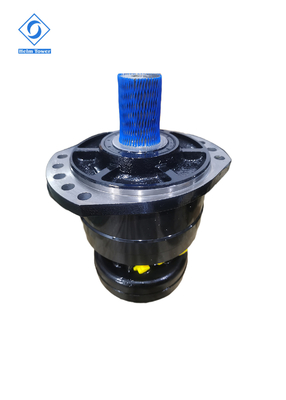

MCR03 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) With 10 years' manufacturing experience, our products can completely replace the original Poclain MS series hydraulic motors well.
Applications:
Mining Machinery: Coal Winning Machine, Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Down-the-hole Drill, Rotary Drill, Mini and Midi Excavators, Mixer Truck, Cutting Machine.
Marine Machinery: Gantry Crane.
Type |
MCR03-225 | MCR03-255 | MCR03-280 | MCR03-325 | MCR03-365 | MCR03-400 | ||||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 255 | 125 | 255 | 125 | 280 | 140 | 325 | 160 | 365 | 180 | 400 | 200 | |
| Max power(kw) | 18 | 12 | 18 | 12 | 18 | 12 | 22 | 14 | 22 | 14 | 22 | 14 |
| Pressure discrepancy 10MPa Torque | 405 | 202 | 405 | 202 | 445 | 222 | 517 | 258 | 580 | 290 | 636 | 318 |
| Rated compressor(MPa) | 25 | |||||||||||
| Max Torque(N. m) (Full displacement) |
1386 | 1570 | 1760 | 1875 | 2105 | 2307 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 40 | 40 | 40 | ||||||
| Rated speed (r/min) | 320 | 280 | 260 | 240 | 240 | 240 | ||||||
| Speed range(r/min) | 10-400 | 10-360 | 10-330 | 10-310 | 10-280 | 10-260 | ||||||
| Application | As revolution mechanism of hydraulic system, used for forklift, skid steer loaderskid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc. | |||||||||||
Contact Person: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
