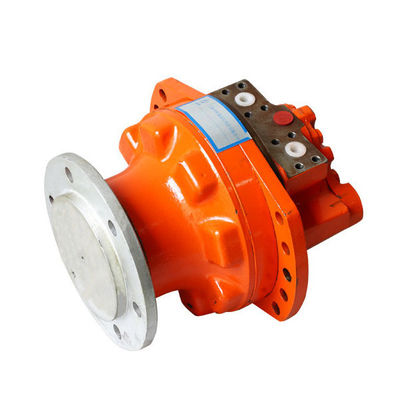

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump

  • Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump
Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed Range: 0-200 R/min Rated Torque: 2903-5005 N.m
Rated Pressure: 25 MPa Max. Pressure: 31.5 MPa
High Light:

Hydraulic Drive Radial Piston Motor

,

Radial Piston Hydraulic Oil Motors

,

High Torque Radial Piston Motor

NHM Hydraulic Oil Motors High Torque Radial Piston Pump



Features:



•✅1. Motor specifications cover a wide range of applications, ranging from 0.2 L / R to 15 L / R.
•✅2.Modular concept, suitable for a variety of applications.
•✅3. The configuration structure is not repeated, and each motor module is freely combined.
•✅4. High performance, including large starting torque, high mechanical and volumetric efficiency, low noise and small moment of inertia.
•✅5. Hydrostatic power brake, inherent characteristics of motor design.
•✅6. Small overall size, flexible layout of the machine design.



Incurve radial piston low speed large toque hydraulic motor
Long service life robust rolling bearing
High power density
Optional mounting position
Adopt Imported Bearing and Oil Seal, etc
Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control

MS11 Displacement Diagram



Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150



Application:


Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane





Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 0Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 1





MS11 Connection Diagram

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 2



Our Workshop:

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 3

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 4

Quality Control:

Hydraulic Drive NHM Hydraulic Oil Motors High Torque Radial Piston Pump 5
