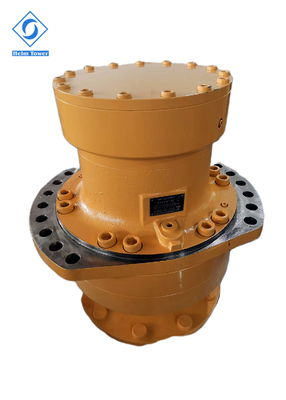

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car

  • Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
  • Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
  • Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
  • Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
Product Details:
Place of Origin: NINGBO
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: Poclain MS25
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 700 units per month
Contact Now
Detailed Product Description
Color: Customized Rated Pressure: 25MPa
Max Pressure: 40MPa Warranty: 1 Year
Application: Heavy Duty Handling Car Condition: New
High Light:

Hydraulic Radial Piston Motor MS25

,

25MPa Radial Piston Motor

,

Handling Car Radial Piston Hydraulic Motor

100% Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car



Features:



This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.



MS25 series Displacement Diagram:





Code
MS25
Displacement Group
8
0
1
2
Displacement(ml/r)
2004
2498
2752
3006
Theoretical torque at 10 MPa(N.m)
3186
3972
4376
4780
Rated speed(r/min)
100
80
63
63
Rated pressure(Mpa)
25
25
25
25
Rated torque(N.m)
6550
8200
9000
9850
Max pressure(Mpa)
31.5
31.5
31.5
31.5
Max torque(N.m)
8100
10100
11150
12150
Speed range(r/min)
0-145
0-137
0-125
0-115
Max power(kW)
90





MS25 Applications:



Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.



Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 0Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 1




MS25 Connection Dimension
Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 2

Workshop View:

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 3

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 4

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 5

Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car 6
