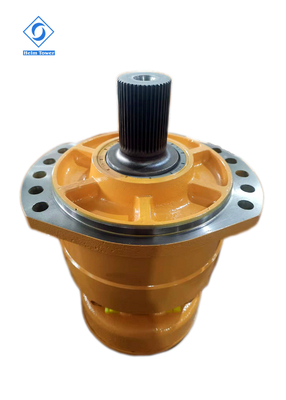

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type

  • Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type
  • Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type
  • Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type
  • Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type
Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type
Product Details:
Place of Origin: NINGBO
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MCR03
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 700 units per month
Contact Now
Detailed Product Description
Type: Hydraulic Piston Motor Color: Customized
Torque: 1386-2307 N.m Max. Pressure: 40 MPa
Warranty: 1 Year Condition: New
High Light:

Rexroth Hydraulic Drive Low Speed Motor

,

Skid Steer Loader Radial Piston Motor

,

Low Speed Skid Steer Hydraulic Motor

Hydraulic Drive Motor Low Speed Motor 1386-2307 N.M Replace Rexroth type For Skid Steer Loader



Features:



MCR03 Hydraulic Piston Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.



Rexroth MCR03/MCRE03/MCR05/MCRE05/MCR10/MCRE10Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.



MCR03 Series Displacement Diagram:



Type MCR03-225 MCR03-255 MCR03-280 MCR03-325 MCR03-365 MCR03-400
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi Full Semi
255 125 255 125 280 140 325 160 365 180 400 200
Max power(kw) 18 12 18 12 18 12 22 14 22 14 22 14
Pressure discrepancy 10MPa Torque 405 202 405 202 445 222 517 258 580 290 636 318
Rated compressor(MPa) 25
Max Torque(N.m) 1386 1570 1760 1875 2105 2307
(Full displacement)
Max pressure(MPa) 40 40 40 40 40 40
Rated speed (r/min) 320 280 260 240 240 240
Speed range(r/min) 10-400 10-360 10-330 10-310 10-280 10-260





Applications:



Mining Machinery: Coal Winning Machine, Road Header,Scraper,Heavy Duty Handling Car,Coal Mine Drill

Engineering Machinery: Skid Steer Loader,Down-the-hole Drill,Rotary Drill,Mini and Midi Excavators,Mixer Truck, Cutting Machine

Marine Machinery: Gantry Crane





Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 0Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 1







HMCR 03 Connection Dimension



Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 2




Workshop View:

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 3

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 4

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 5

Quality Control:

Skid Steer Loader Low Speed Hydraulic Drive Motor 1386 - 2307 N.M Replace Rexroth Type 6
