Home ProductsPoclain Hydraulic Motor

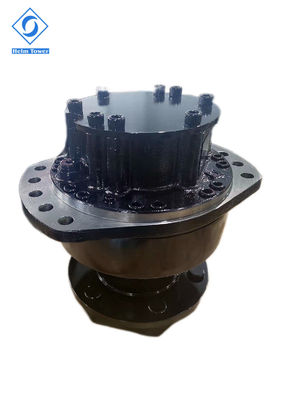

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed

  • MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed
  • MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed
  • MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed
  • MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed
MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS08/MSE08
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Low Speed High Torque Hydraulic Motor Speed: 0-160 R/min
Torque: 1858-4960N.m Rated Pressure: 25 MPa
Max. Pressure: 31.5 MPa Color: Customized
High Light:

Steel Hydraulic Piston Motor MSE08

,

Steel Poclain Drive Motor

,

160 R/Min Radial Piston Hydraulic Motor

Hydraulic Piston Motor 0 - 160 R/Min Speed Ms08 Mse08 Poclain Steel



Features:



MS08/MSE08  series hydraulic motor:



This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.





Applications:



1.Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.

2.Farming Machinery: Spray Machine.

3.Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.

4.Special Vehicles: Fire Engine.

5.Forest Machinery: Stumper, Loader, Forest Felling Machine.



MS08 Displacement Diagram



Type

Displacement

MS08-8 MS08-9 MS08-0 MS08-1 MS08-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 627 313 702 351 780 390 857 428 934 467
Max power(kw) 36 24 36 24 36 24 36 24 36 24

Pressure discrepancy

10MPa Torque (N.m)

937 459 1049 514 1166 571 1281 628 1396 684
Rated torque(N.m) 2343 2623 2914 3202 3490
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 70 70 70 65 65
Speed range(r/min) 0-170 0-170 0-170 0-155 0-140







MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 0






MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 1MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 2

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 3





MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 4MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 5



MS08 Connection Dimension

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 6

Workshop View:

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 7

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 8

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 9

Quality Control:

MS08 MSE08 Poclain Steel Hydraulic Piston Motor 0 - 160 R/Min Speed 10
