| Place of Origin: | CHINA |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MS08 MSE08 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Type: | Hydraulic Drive Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-170 R/min | Rated Pressure: | 25 MPa |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Mining Machinery Radial Piston Motor,Hydraulic Wheel Drive Motor 25 MPa,MSE08 Hydraulic Motor High Torque |
||

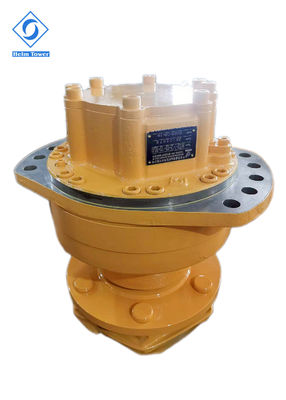

High Torque MS08 MSE08 Hydraulic Drive Motor For Mining Machinery
Features:
MS08 series hydraulic motor:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.
MS08 Displacement Diagram
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Applications:
Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.
Farming Machinery: Spray Machine.
Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.
Special Vehicles: Fire Engine.
Forest Machinery: Stumper, Loader, Forest Felling Machine.
MS08 Connection Dimension
Workshop View:
Quality Control:
