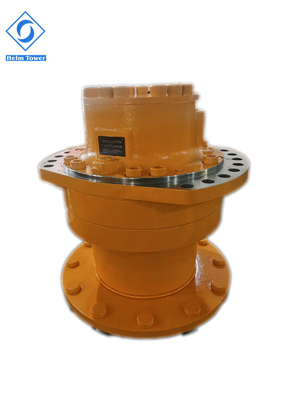

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery

  • Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery
  • Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery
  • Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery
  • Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery
Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS25
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Low Speed High Torque Hydraulic Motor Color: Customized
Rated Pressure: 25MPa Max Pressure: 40MPa
Warranty: 1 Year Application: Construction/Agriculture/Mining/Marine Machinery
High Light:

Radial Piston Motor Poclain MS25

,

Construction Machinery Radial Piston Motor

,

Radial Piston Poclain Drive Motor

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery



Features:



This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.



MS25 series Displacement Diagram:





Code
MS25
Displacement Group
8
0
1
2
Displacement(ml/r)
2004
2498
2752
3006
Theoretical torque at 10 MPa(N.m)
3186
3972
4376
4780
Rated speed(r/min)
100
80
63
63
Rated pressure(Mpa)
25
25
25
25
Rated torque(N.m)
6550
8200
9000
9850
Max pressure(Mpa)
31.5
31.5
31.5
31.5
Max torque(N.m)
8100
10100
11150
12150
Speed range(r/min)
0-145
0-137
0-125
0-115
Max power(kW)
90





MS25 Applications:



Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.



Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 0Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 1




MS25 Connection Dimension
Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 2

Workshop View:

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 3

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 4

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 5

Hydraulic Radial Piston Motor Poclain MS25 For Construction Machinery 6
