| Place of Origin: | CHINA |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MSE02 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 700 units per month |
| Type: | Hydraulic Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 160 R/min | Torque: | 1100-1300 N.m |
| Max. Pressure: | 31.5 MPa | Condition: | New |
| High Light: | Beam Carrier Radial Piston Motor,Poclain MSE02 Piston Pump Motor,1100N.M Rotary Piston Motor |
||

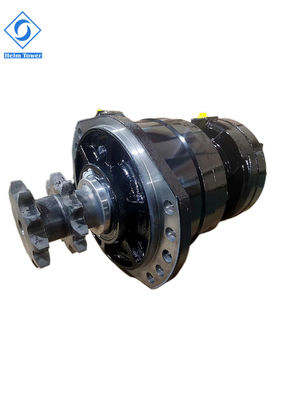

Premium Poclain MSE02 Radial Piston Motor 1100-1300N.m For Construction Machinery
Features:
Poclain MS02 Hydraulic Motor
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS02 Displacement Diagram
| Code | HMS02 | HMSE02 | |||||
| Displacement Group | 8 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 172 | 213 | 235 | 255 | 332 | 364 | 398 |
| Theoretical torque at 10Mpa(N.m) | 273 | 339 | 374 | 405 | 528 | 579 | 633 |
| Rated speed(r/min) | 200 | 200 | 160 | 160 | 160 | 125 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 550 | 700 | 750 | 800 | 1100 | 1150 | 1300 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 650 | 850 | 950 | 1000 | 1300 | 1450 | 1600 |
| Speed range(r/min) | 0-390 | 0-310 | 0-285 | 0-260 | 0-200 | 0-182 | 0-165 |
| Max.power(kW) |
Standard displacement is 18kW(HMSE02 22kW), |
||||||
Applications:
Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher.
MS02 Connection Dimension
Workshop View:
Quality Control:
