| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MSE05 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 850USD |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800 units per month |
| Type: | Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-190 R/min | Torque: | 1650-2650 N.m |
| Rated Pressure: | 25 MPa | Max. Pressure: | 40 MPa |
| High Light: | Scraper Radial Piston Motor,Multi Disc Brake Piston Pump Motor,Hydraulic Poclain Radial Piston Motor |
||

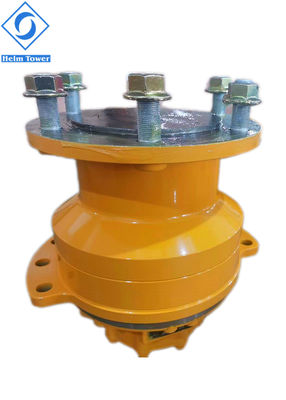

Hydraulic Piston Motor Piston MS05 MSE05 Motor For Poclain Made in China
Features:
MS05 Hydraulic Piston Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS05 Displacement Diagram
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.
Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Special Vehicles: Fire Engine.
Workshop View:
Quality Control:
