| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MSE05 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Type: | Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-200 R/min | Torque: | 2000-3260N.m |
| Rated Pressure: | 25 MPa | Max. Pressure: | 31.5 MPa |
| High Light: | Skid Steer Hydraulic Drive Motor,Piston Skid Steer Hydraulic Wheel Motor,Hydraulic Poclain Drive Motor |
||
Features:
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

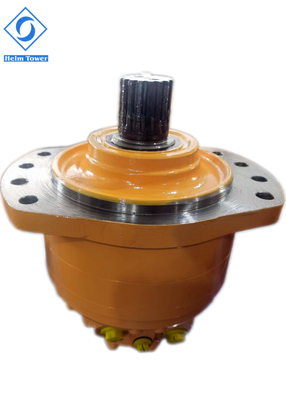

Poclain MS05/MSE05 Hydraulic Motor:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in mining machinery( coal mine drill, heavy duty handling car), construction machinery(scavenging machine, aircraft tractor), farming machinery( mini farming vehicle, ditcher), etc.
MSE05 Displacement Diagram
| Displacement Group | 8 | 0 | 1 | 2 | 3 |
| Displacement (ml/r) | 530 | 625 | 688 | 750 | 820 |
| Theoretical Torque at 10Mpa (N.m) | 843 | 994 | 1094 | 1193 | 1304 |
| Rated Speed (r/min) | 100 | 100 | 100 | 80 | 80 |
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 |
| Rated Torque (N.m) | 1700 | 2050 | 2250 | 2450 | 2650 |
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. Torque (N.m) | 2100 | 2500 | 2750 | 3000 | 3300 |
| Speed Range (r/min) | 0-160 | 0-160 | 0-160 | 0-125 | 0-125 |
| Max. Power (kw) | Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW | ||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.
Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Special Vehicles: Fire Engine.
Workshop View:
Quality Control:
Contact Person: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
