| Place of Origin: | China |
| Brand Name: | Helm Tower Hydraulic |
| Certification: | ISO9001:2008 |
| Model Number: | MS08 MSE08 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sets per month |
| Warranty: | 1 Year | Color: | Customized |
|---|---|---|---|
| Type: | Hydraulic Piston Motor | Package: | Wooden Case |
| Feature: | Low Speed High Torque | Rated Pressure: | 25 Mpa |
| Max Pressure: | 31.5 Mpa | Application: | Agricultural Machinery |
| High Light: | Hydraulic Radial Piston Motor Customized,Agricultural Machinery Hydraulic Radial Piston Motor |
||

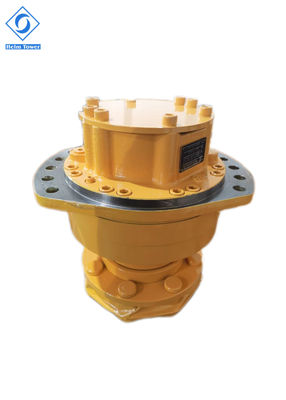

Hydraulic Radial Piston Motor MS08 MSE08 For Agricultural Machinery
MS08 Hydraulic Piston Motor:
The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.
|
Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
|
Pressure discrepancy 10MPa Torque (N.m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N.m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
Our advantages:
1).High performance: our motor is very close to Poclain original motors, even sometimes be superior to originals.
2). Interchangeable: our complete motor and spare parts can well replace the originals.
3).Reasonable price: our price much lower than Poclain original motors.
4).Fast delivery time: almost spare parts have stock, regular motor lead time within 10 days
5). we have 12 months' quality warranty, and within warranty time ,all repairment are FREE of charge.
