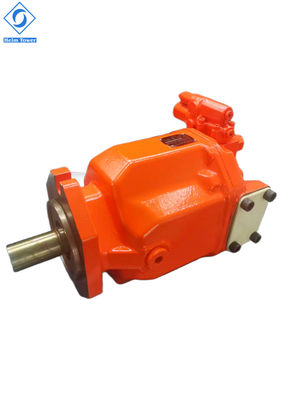

Hydraulic Piston Pump A10V Radial Loading High Pressure Axial

Hydraulic Piston Pump A10V Radial Loading High Pressure Axial

  • Hydraulic Piston Pump A10V Radial Loading High Pressure Axial
  • Hydraulic Piston Pump A10V Radial Loading High Pressure Axial
  • Hydraulic Piston Pump A10V Radial Loading High Pressure Axial
  • Hydraulic Piston Pump A10V Radial Loading High Pressure Axial
Hydraulic Piston Pump A10V Radial Loading High Pressure Axial
Product Details:
Place of Origin: Ningbo China
Brand Name: Helm Tower
Model Number: Rexroth A10V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5 days
Payment Terms: L/C, T/T
Supply Ability: 2000 pieces per month
Contact Now
Detailed Product Description
Certification: ISO9001 Package: Wooden Case
Warranty: 1 Year Product Name: Hydraulic Piston Pump
Power: Hydraulic Speed: High Speed
Color: Customized Condition: New
High Light:

Radial Loading Hydraulic Piston Pump

,

280Bar Hydraulic Piston Pump

,

Hydraulic Piston Pump Axial

Hydraulic Piston Pump A10V , Radial Loading High Pressure Axial Piston Pump



 Features:



A10V variable displacement hydraulic piston pump

Nominal pressure 280Bar, Peak pressure 350Bar;

Swash plate design axial variable piston pump used in open circuit.
Continuous work pressures can reach 280bar; the highest instantaneous work pressure can reach 350bar.
The flow is directly proportional to the drive rotate speed and the displacement, and can make stepless variable come true by adjusting the obliquity of the swash plate.
There are various of control type such as DR, DFR, DFLR etc. and the control response is very fast.
Low noises level, High efficiency, High reliability and long time service life.
Small volume, High power density.
Excellent oil absorbency.
Axial and radial loading of drive shaft possible
SAE and ISO mounting flange

Thru shaft configuration use in circuit system





DR DRF/DRS LA DFE ED (RE 92707)
Pressure controller Pressure and flow controller Pressure, flow and power controller Pressure and flow controller, electronic Electrohydraulic closed-loop pressure control





Appliation:



Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.





Specification data:



Type A10VSO16 A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Sizes 18 18 28 45 71 100 140
Displacement Vg max cm3 18 18 28 45 71 100 140
Max speed nmax rpm 3300 3300 3000 2600 2200 2000 1800
Max. flow In nmax qv L/min 59.4 59.4 84 117 156 200 252
in 1500 r/min 27 27 42 68 107 150 210
(¦¤p=280bar) in nmax Pmax Kw 27.7 27.7 39 55 73 93 118
Max. power in 1500 r/min 12.6 12.6 20 32 50 70 98
(¦¤p=280bar) in Vg max Tmax Nm 80.1 80.1 125 200 316 445 623
Max. torque
Weight m Kg 12 12 15 21 33 45 60















Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump





Rexroth A2F/A2FO/A2FM/A10V/A10VG45/A10VG63/A10VSO/A4V/A4VSO/A6V/A6VM/A7V/A7VO/A8V/A8VO/A11V/A11VO bomba hydraulic pump



Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump

A2F

Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump

A4VSO

Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump

A6VM

Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump

A7V

Rexroth A10V a10vo A10VSO A10VO18 a10v28 A10VO28 A10VO45 A10VSO45 a10vo71 A10VO100 A10VO140 A10VSO140 hydraulic piston pump
