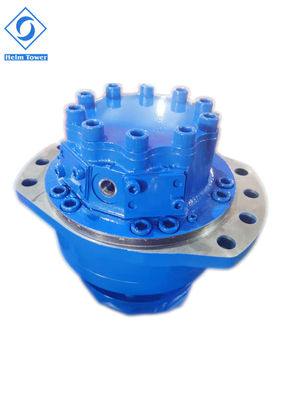

31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery

31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery

  • 31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery
  • 31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery
  • 31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery
  • 31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery
31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Rated Pressure: 25 MPa Max. Pressure: 31.5 MPa
Warranty: 1 Year Max.torque: 2950-6800 N.m
High Light:

MSE11 Hydraulic Piston Motor

,

MS11 Hydraulic Piston Motor

,

31.5 MPa Hydraulic Piston Motor

Hydraulic Piston Motor MS11 MSE11 stable quality for Machinery



1) Radial piston type,low speed,high torque
2) Modular design, High efficiency

3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,

5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



Incurve radial piston low speed large toque hydraulic motor
Long service life robust rolling bearing
High power density
Optional mounting position
Adopt Imported Bearing and Oil Seal, etc
Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control


Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane



MS11 Displacement Diagram



Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150





31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery 031.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery 1





MS11 Connection Diagram

31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery 2



High precision testing facilities and experienced inspectors.



31.5 MPa Hydraulic Piston Motor MS11 MSE11 For Machinery 3
