| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Model Number: | MCR05 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Certification: | ISO9001 | Type: | Piston Motor |
|---|---|---|---|
| Color: | Customized | Speed: | 0-220 R/min |
| Torque: | 1419-2802 N.m | Warranty: | 1 Year |
| Application: | Skid Steer Loader | After Warranty: | Online Support, Video Technical Support |
| High Light: | 2802 Nm Hydraulic Drive Motor,Skid Steer Loader Hydraulic Drive Motor,220r/min Hydraulic Drive Motor |
||

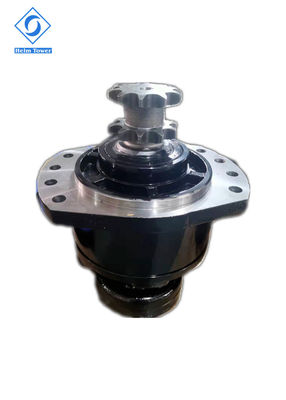

Hydraulic Drive Motor New Black MCR05 MCRE05 For Skid Steer Loader
Specifications
Rexroth MCR5 MCR05 series motor also be called Incurve Multicam Radial-piston
Low Speed High Torque Hydraulic Motor, Which has many features as followed:
1) Modular design
2) High efficiency
3) High pressure and smooth running even at very low speeds
4) Permissible Ridial and Axial load
5) Motor with multi-disc brake (holding brake)
We can provide you
Rexroth MCR3, MCR03, MCR5, MCR05, MCR10 etc.
Poclain MS02, MSE02, MS05, MSE05, MS08, MSE08, MS11, MSE11, MS18, MSE18, MS25, MS35, MS50, MS83, MS125 SERIES motor & related spare parts, repair parts, motor seal kits etc...
The perfomance of our motor as below:
Motor with brake & motor without brake.
Duel speed motor & single speed motor.
Variable displacement motor.
Large torque with low speed.
Otherwise, all of our MS series motors can replace original poclain motor completely.
Moreover, we can warranty the motor quality for 1 year. This means during guantee time, all repairment are free of charge.
Technical data sheet
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine,
MCR05 Connection Dimension
Motor Test Room
Our office
FAQ
Q:Are you trading company or manufacturer?
A: A manufacturer with 15 years experience in producing motors.
Q:Which payment terms do you accept?
A:T/T L/C.
Q:What's the warranty of your products?
A:One year from the delivery date.
Q:Can we buy 1 piece for quality testing?
A:Yes, no problem.
