| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MS18 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |

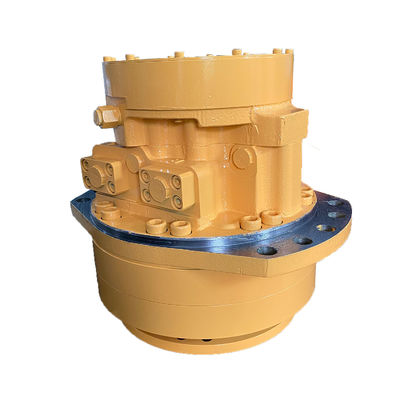

| Type: | Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed: | 0-100r/min | Torque: | 8343-8500 N.m |
| Rated Pressure: | 25 MPa | Max. Pressure: | 31.5 MPa |
| High Light: | Hydraulic Poclain Wheel Motors,100RPM Poclain Wheel Motors,Poclain Wheel Radial Piston Motor |
||
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
Package
Our advantages:
1). High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2). 100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3). Reasonable price:our price system has been settled much lower than Poclain original motors.
4). Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5). Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
