Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine

Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine

  • Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine
  • Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine
  • Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine
Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine
Product Details:
Place of Origin: CHINA
Brand Name: Helm Tower
Certification: IS09001
Model Number: MS50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, L/C
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Rated Pressure: 25Mpa Max Pressure: 31.5Mpa
Warranty: 12month Certificate: ISO9001
Colour: Customer's Request Condition: New
Product Name: Poclian MS MSE Motor Type: Hydraulic Motors
Place Of Origin: Ningbo,China
High Light:

25Mpa Poclain Hydraulic Motor

,

Low Noise Poclain Hydraulic Motor

,

Forestry Machine Poclain Hydraulic Motor

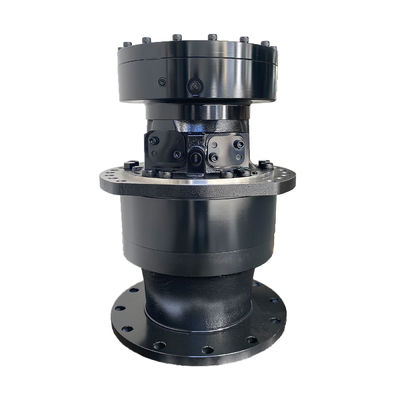

Helm Tower MS50 Hydraulic Motor With Brake Replace Poclain

Poclain MS50 Hydraulic Motor Description ( Features )



-- High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.

-- Low periph-eral speed

-- High efficient.

-- Long service life robust rolling bearing.

-- Drive shaft will support radial loads.

-- Low noise level.

-- High duty roller bearing for intermettent high pressure operation.

-- For continuous duty hydrostatic are availabe.

-- Excellent starting characteristics.

-- High power density

-- Optional mounting position



Displacement Group 7 8 0 2
Displacement(ml/r) 3500 4008 4997 6011
Theoretical torque a 10Mpa(N.m) 5565 6373 7945 9557
Rated speed(r/min) 80 80 63 50
Rated pressure(Mpa) 25 25 25 25
Rate torque(N.m) 11500 13150 16400 19750
Max pressure(Mpa) 31.5 31.5 31.5 31.5
Max torque(N.m) 14150 16250 20250 24350
Speed range(r/min) 0-148 0-138 0-111 0-92
Max power(kW) standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw.



Our motor advantages:

1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.

2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.

3).Reasonable price:our price system has been settled much lower than Poclain original motors.

4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.

5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.



Application:

Our MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.

For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B

- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- BOBCAT T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT)

Low Noise 25Mpa Poclain Hydraulic Motor for forestry machine 0
