| Place of Origin: | CHINA |
| Brand Name: | Helm Tower Hydraulic |
| Certification: | ISO9001 |
| Model Number: | MCR05 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1250usd |
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 Year | Color: | Follow Customer's Requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery Time: | 5-7 Days | Package: | Wooden Case |
| High Light: | MCR05 hydraulic radial piston motor,Rexroth hydraulic radial piston motor,BOBCAT hydraulic radial piston motor |
||

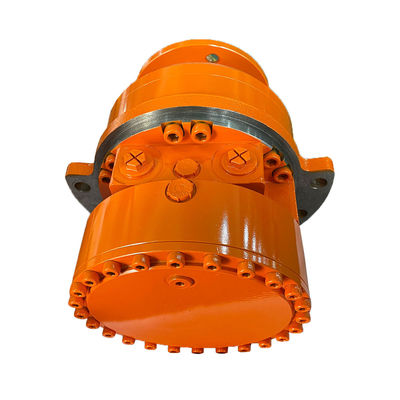

Rexroth MCR05 Hydraulic Radial Piston Motor BOBCAT T190 Final Drive
Product Features:
HMCR serirs radial piston type hydraulic motor
Could replace Rexroth same series hydraulic motor perfectly
Designed in control modules,combine freely
High efficiency,High pressure, low noise
Radial piston,Low speed,High torque
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
