Place of Origin: | CHINA |
Brand Name: | Helm Tower Hydraulic |
Certification: | ISO9001 |
Model Number: | MS02 MSE02 |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | wooden case |
Delivery Time: | 10days |
Payment Terms: | L/C |
Supply Ability: | 450 sets per month |
Certificate: | ISO9001:2008 | Warranty: | 1 Year |
---|---|---|---|
Type: | Poclain Hydraulic Motors | Color: | Follow Customer's Requirement |
Application: | Machinery | Pressure: | High Pressure |
Highlight: | radial piston hydraulic motor,axial piston hydraulic motor |

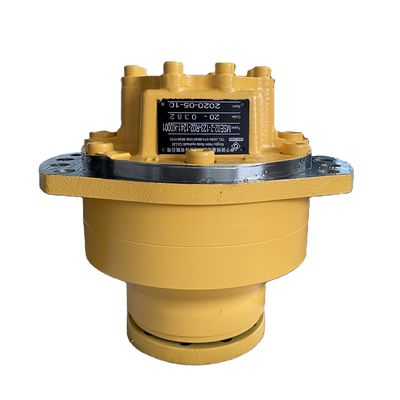

Poclain MS02 MSE02 low speed hydraulic piston wheel shaft Drive motor / Helm Tower
Poclain Hydraulic Motor: MS02 MSE02
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.
Applications
Construction Machinery
scavenging machine, aircraft tractor,beam carrier/hoisting machine
Mining Machinery
Heavy duty handling car,coal mine drill
Farming Machiney
Mini farming vehicle, ditcher
Specifications:
Type Displacement |
MS02-8 | MS02-9 | MS02-0 | MS02-1 | MS02-2 | |||||
Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
Displacement(ml/r) | 172 | 86 | 213 | 106 | 235 | 118 | 255 | 128 | ||
Max power(kw) | 16 | 10 | 16 | 10 | 16 | 10 | 16 | 10 | ||
Pressure discrepancy 10MPa Torque (N.m) |
273 | 136 | 340 | 170 | 351 | 175 | 405 | 202 | ||
Rated torque(N.m) | 643 | 796 | 878 | 953 | ||||||
Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
Rated speed(r/min) | 140 | 140 | 140 | 120 | ||||||
Speed range(r/min) | 0-310 | 0-310 | 0-310 | 0-260 |
Spare parts
