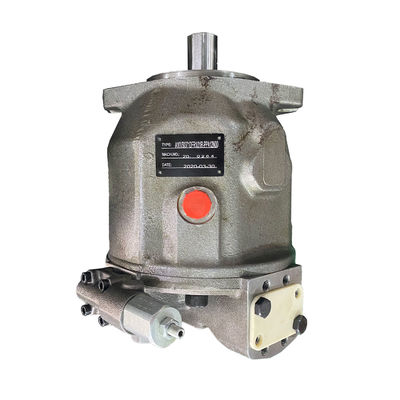

A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump

A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump

  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
  • A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump
Product Details:
Place of Origin: China
Brand Name: Helm Tower
Certification: ISO9001:2008
Model Number: A10VSO71DFR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 3-7 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets 1 moth
Contact Now
Detailed Product Description
Material: Iron Warranty: 1 Year
Color: Customer Required Performance: Replace Rexroth Originals Very Well
High Light:

axial piston pump

,

radial piston pump

Helm Tower Brand Rexroth A10VSO A10VSO71DFR Series Hydraulic Pump



Features:
The A10VSO range of variable displacement piston pump is designed for use in open circuit
hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.

Following are the design and performance, advantage of this product.
1.The product supports ISO or SAE flange mounting and also support UNC thread system.
2.It has two drainage ports on the housing , and superior suction performance.



Specification:



Model A10V(S)O16/18 A10V(S)O28 A10V(S)O45 A10V(S)O71 A10V(S)O100 A10V(S)O140
Displacement (ml/r) 18 28 45 71 100 140
Direction of rotation (view from shaft end) R: Clockwise L:Counter Clockwise
Rated speed (r/min) 2200 2000 1500 1500 1500 1500
Max. speed (r/min) 3300 3000 2600 2200 2000 1800
Inlet pressure (MPa) 0.08-3
Rated pressure (MPa) 28
Max pressure (MPa) 35
Recommended oil L-HM46(SUMMER) L-HM32(WINTER)
Housing pressure (MPa) <=0.2
Working mode open circuit system


Model Code
A10VSO71DFR Hydraulic Piston Pump Rexroth A10VSO Series Hydraulic Pump 0

A10VSO71DFR131R-PPA12N00
