| Place of Origin: | China |
| Brand Name: | Helm Tower Hydraulic |
| Certification: | ISO9001:2008 |
| Model Number: | Poclain MS18 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden case |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
| Warranty: | 1 Year | Color: | Follow Customer's Requirement |
|---|---|---|---|
| Type: | Hydraulic Piston Motor | Package: | Wooden Case |
| Material: | Steel | Feature: | Low Speed High Torque |
| High Light: | radial piston hydraulic motor,axial piston hydraulic motor |
||

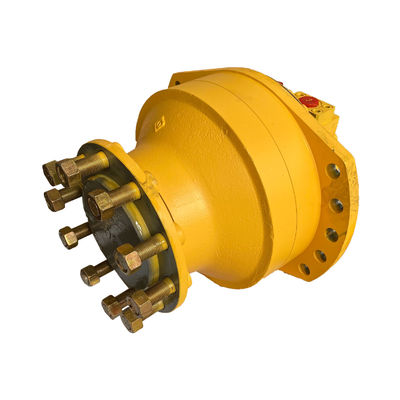

Hydraulic Motor Poclain MS18 MSE18 Low Speed High Torque Wheel / Shaft Hydraulic Engine Final Drive Motor
MS18 Hydraulic Piston Motor:
Low speed Large torque Hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Code | HMS18 | HMSE18 | |||||||
| Displacement Group | 6 | 8 | 9 | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 1091 | 1395 | 1571 | 1747 | 1911 | 2099 | 2340 | 2560 | 2812 |
| Theoretical torque a 10Mpa(N.m) | 1735 | 2218 | 2498 | 2778 | 3038 | 3337 | 3721 | 4070 | 4471 |
| Rated speed(r/min) | 100 | 100 | 100 | 80 | 80 | 80 | 63 | 63 | 63 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rate torque(N.m) | 3580 | 4550 | 5150 | 5700 | 6250 | 6900 | 7650 | 8400 | 9200 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 4420 | 5650 | 6350 | 7050 | 7700 | 8500 | 9450 | 10350 | 11400 |
| Speed range(r/min) | 0-170 | 0-155 | 0-140 | 0-125 | 0-115 | 0-100 | 0-90 | 0-85 | 0-75 |
| Max power(kW) | standard displacement is 70kw,variable displacement priority rotation 47kw,no priority is 35kw. | ||||||||
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
Any inquriy and problem of hydraulic systems, welcome here!
