| Place of Origin: | Ningbo China |
| Brand Name: | Helm Tower |
| Model Number: | Rexroth A10V |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces per month |
| Certification: | ISO9001 | Package: | Wooden Case |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Piston Pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According To Customer Demand |
| High Light: | axial piston pump,radial piston pump |
||

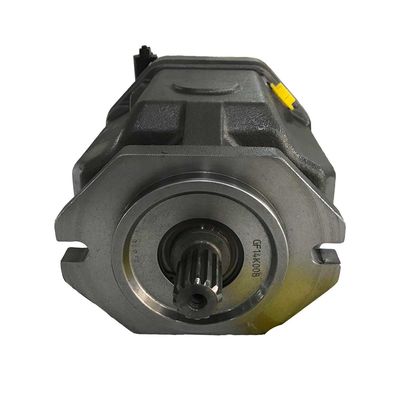

Rexroth Axial piston variable pump A10VSO Series A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10V140
Features:
A10V variable displacement hydraulic piston pump
Nominal pressure 280Bar, Peak pressure 350Bar;
Swash plate design axial variable piston pump used in open circuit.
Continuous work pressures can reach 280bar; the highest instantaneous work pressure can reach 350bar.
The flow is directly proportional to the drive rotate speed and the displacement, and can make stepless variable come true by adjusting the obliquity of the swash plate.
There are various of control type such as DR, DFR, DFLR etc. and the control response is very fast.
Low noises level, High efficiency, High reliability and long time service life.
Small volume, High power density.
Excellent oil absorbency.
Axial and radial loading of drive shaft possible
SAE and ISO mounting flange
Thru shaft configuration use in circuit system
| DR | DRF/DRS | LA | DFE | ED (RE 92707) |
| Pressure controller | Pressure and flow controller | Pressure, flow and power controller | Pressure and flow controller, electronic | Electrohydraulic closed-loop pressure control |
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
Rexroth A2F/A2FO/A2FM/A10V/A10VG45/A10VG63/A10VSO/A4V/A4VSO/A6V/A6VM/A7V/A7VO/A8V/A8VO/A11V/A11VO bomba hydraulic pump
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
If you have another question, pls feel free to contact us as below:
Contact Person: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
