| Place of Origin: | Ningbo China |
| Brand Name: | Helm Tower |
| Certification: | ISO9001 |
| Model Number: | Rexroth A10V |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces per month |
| Package: | Wooden Case | Certification: | ISO9001 |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Piston Pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According To Customer Demand |
| Piston Pump: | Rexroth Piston Pump | Model Number: | A10V(S)O 16/28/45/71/100/140 |
| MOQ: | 1 Set | Port: | Ningbo,shanghai,qingdao... |
| Highlight: | axial piston pump,radial piston pump |
||

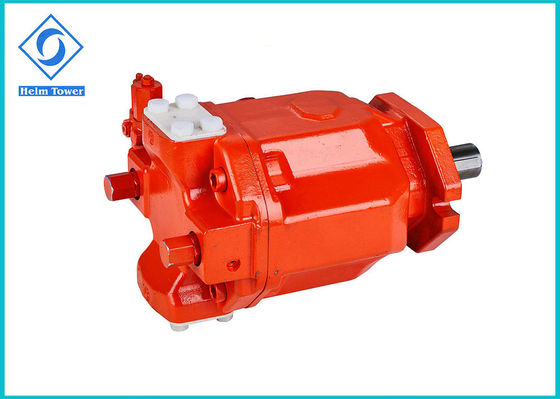

Rexroth hydraulic A10V A10VSO A10VS071DFR/31R Axial Piston Variable Pump
The characteristics of A10VSO pump:
1.Completely interchangeable with original
2.Very competitive price
3.Low-noise, high efficiency, high reliability, long life
4.Small size, high power density
5.Excellent oil absorption properties.
6.1 year of warranty
7.For engineering machinery, maritime and boat and industrial machinery etc.
8.For open-loop Swashplate axial piston pump.
9.Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.
10.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
11.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
12.Drive shaft can withstand the axial and radial loads
13.SAE and ISO mounting flange
14.For pass-axis structure, and for multi-loop system
15.Start at any time in pressure condition.
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
Shipping
urgent & small gross weight by air
big gross weight by sea
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
