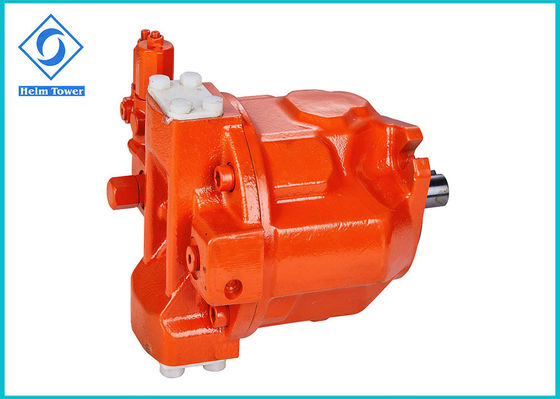

Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life

Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life

  • Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life
Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life
Product Details:
Place of Origin: Ningbo China
Brand Name: Helm Tower
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Certification: ISO9001 Model Number: A10V(S)O 16/28/45/71/100/140
Package: Wooden Case Warranty: 1 Year
Product Name: Hydraulic Piston Pump Power: Hydraulic
Speed: High Speed Usage: Construction Machinery
Color: According To Customer Demand Piston Pump: Rexroth Piston Pump
MOQ: 1 Set Port: Ningbo,shanghai,qingdao...
High Light:

axial piston pump

,

radial piston pump

Hydromatik Rexroth A10VO71 Main hydraulic axial piston variable Pump A10V Series A10VSO

Hydraulic Piston Pump Series including CY, A2F, A2FO, A7V, A4V, A10V Series, which is the same as Orignal Rexroth, the same appreance, mounting size and working perofrmance.

The products are widely used in machine tool, forging machinery, metallurgy machinery, engineering machinery, mine machinery and other hydraulic systems. They also can be used as hydraulic motors if the valve plate is changed into motor type.

Product Features:

1. Axial piston pump with swashplate design for hydraulic drive in open circuit
2. Optional installation location
3. Excellent oil absorption characteristics
4. Low noise level
5. Long service life
6. Modular design
7. Short response time
8. Variable speed drive options
9. Visible swing angle indicator
10. The flow rate is proportional to the input transmission speed and displacement. By adjusting the swashplate angle, the output flow can be steplessly adjusted.
11. Use of HF oil in the case of reduced operating data There is a special model that can be used to run with HFC oil









Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 0


Specification data:



Type A10VSO16 A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Sizes 18 18 28 45 71 100 140
Displacement Vg max cm3 18 18 28 45 71 100 140
Max speed nmax rpm 3300 3300 3000 2600 2200 2000 1800
Max. flow In nmax qv L/min 59.4 59.4 84 117 156 200 252
in 1500 r/min 27 27 42 68 107 150 210
(¦¤p=280bar) in nmax Pmax Kw 27.7 27.7 39 55 73 93 118
Max. power in 1500 r/min 12.6 12.6 20 32 50 70 98
(¦¤p=280bar) in Vg max Tmax Nm 80.1 80.1 125 200 316 445 623
Max. torque
Weight m Kg 12 12 15 21 33 45 60

Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 1



Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 2









Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 3







Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 4




Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 5

Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.

Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 6



Shipping

urgent & small gross weight by air

big gross weight by sea

Metallurgy Machinery Small Axial Piston Pump Modular Design Long Service Life 7









FAQ:



Q: Are you a manufacturer or trading company?

A: Manufacturer



Q: Your payment?

A: 100% TT in advance



Q: Your minmun order quantity(MOQ)?

A: 1 set



Q: Warranty time?

A: 1 year
