Place of Origin: | Ningbo China |
Brand Name: | Helm Tower |
Certification: | ISO9001 |
Model Number: | Rexroth A10V |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case |
Delivery Time: | 3 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000 pieces per month |
Package: | Wooden Case | Certification: | ISO9001 |
---|---|---|---|
Warranty: | 1 Year | Product Name: | Hydraulic Piston Pump |
Power: | Hydraulic | Speed: | High Speed |
Usage: | Construction Machinery | Color: | According To Customer Demand |
Piston Pump: | Rexroth Piston Pump | Model Number: | A10V(S)O 16/28/45/71/100/140 |
MOQ: | 1 Set | Port: | Ningbo,shanghai,qingdao... |
Highlight: | axial piston pump,radial piston pump |

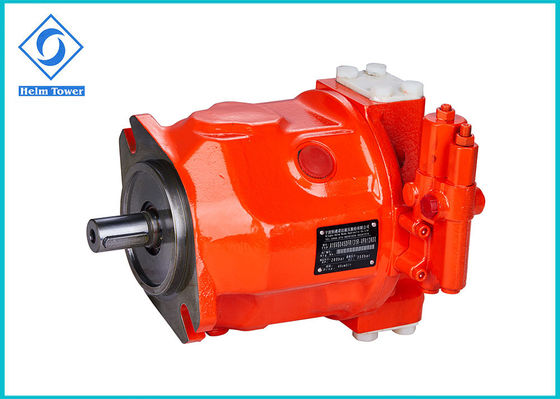

Rexroth A10VO28DR/31R-PSC12K01 Hydraulic Pump A10V Axial Piston Variable Pump
The products are widely used in machine tool, forging machinery, metallurgy machinery, engineering machinery, mine machinery and other hydraulic systems. They also can be used as hydraulic motors if the valve plate is changed into motor type.
1. Axial piston pump with swashplate design for hydraulic drive in open circuit
2. Optional installation location
3. Excellent oil absorption characteristics
4. Low noise level
5. Long service life
6. Modular design
7. Short response time
8. Variable speed drive options
9. Visible swing angle indicator
10. The flow rate is proportional to the input transmission speed and displacement. By adjusting the swashplate angle, the output flow can be steplessly adjusted.
11. Use of HF oil in the case of reduced operating data There is a special model that can be used to run with HFC oil
Specification data:
Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
(¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
(¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
Max. torque | ||||||||||
Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 |
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
Shipping
urgent & small gross weight by air
big gross weight by sea
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
