| Place of Origin: | Ningbo China |
| Brand Name: | Helm Tower |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces per month |
| Certification: | ISO9001 | Model Number: | A10V(S)O 16/28/45/71/100/140 |
|---|---|---|---|
| Package: | Wooden Case | Warranty: | 1 Year |

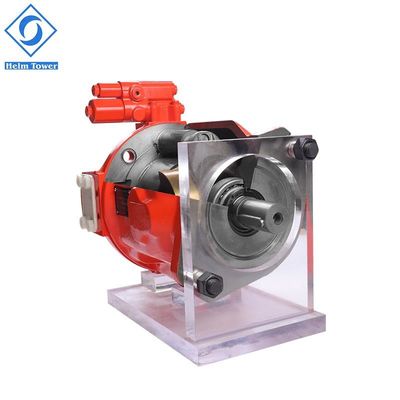

| Product Name: | Hydraulic Piston Pump | Power: | Hydraulic |
| Speed: | High Speed | Usage: | Construction Machinery |
| Color: | According To Customer Demand | Piston Pump: | Rexroth Piston Pump |
| MOQ: | 1 Set | ||
| High Light: | axial piston pump,radial piston pump |
||
Sourcing A10V/A10VG45/A10VG63/A10VSO/A4V/A4VSO/A6V/A6VM/A7V/A7VO/A8V/A8VO/A11V/A11/A2F/A2FO/A2FM Manufacturer from China
Product Features:
Models:
A2FO16,A2FO23,A2FO32,A2FO45,A2FO56,A2FO63,A2FO80,A2FO90,A2FO107,A2FO125,
A2FO160,A2FO180,A2FO250
A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 A4VSO750
A6VM A6VM28/A6VM55/A6VM80/A6VM107/A6VM160/A6VM200/A6VM250/A6VM355/A6VM500/A6VM1000
A7V A7VO A7VO55 A7VO80 A7VO107 A7VO160 A7V250 A7VO250 A7VO355 A7VO500 A7VO1000
A8V28 A8VO28 A8V55 A8VO55 A8VO58 A8V80 A8VO80 A8V107 A8VO107 A8V125 A8VO125 A8V140 A8VO140 A8V200 A8VO200
A10VO18 A10VO28 A10VO45 A10VO71 A10VO100 A10VO140
Rexroth Axial piston variable pump A4VSO Series
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
-Variable pump with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open circuit
-For use in mobile and stationary applications
-The flow is proportional to the drive speed and displacement.
-The flow can be infinitely varied by adjusting the bent axis.
-Wide selection of control devices
-Compact, robust pump with long service life
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 |
|
