| Place of Origin: | Ningbo China |
| Brand Name: | Helm Tower |
| Certification: | ISO9001 |
| Model Number: | Rexroth A10V |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces per month |
| Package: | Wooden Case | Certification: | ISO9001 |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Piston Pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According To Customer Demand |
| Piston Pump: | Rexroth Piston Pump | Model Number: | A10V(S)O 16/28/45/71/100/140 |
| MOQ: | 1 Set | ||
| High Light: | axial piston pump,radial piston pump |
||

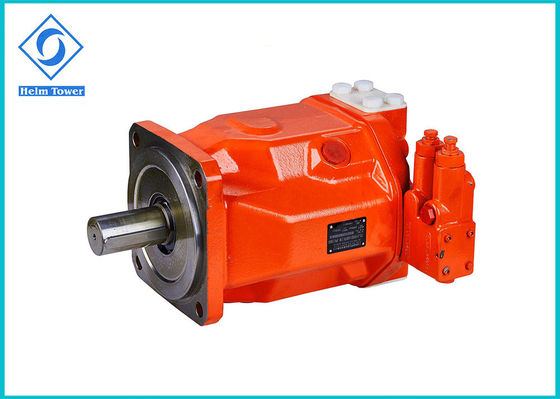

Chinese Rexroth Hydraulic Motor A10V G28/45/71 Wholesale factory
Application & Features---------------------------------------------------------------
The A10VSO range of variable displacement piston pump is designed for use in open circuit,hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.
Following are the design and performance, advantage of this product.1.The product supports ISO or SAE flange mounting and also support UNC thread system.2.It has two drainage ports on the housing , and superior suction performance.
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
Contact Person: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
