Home ProductsHydraulic Piston Pump

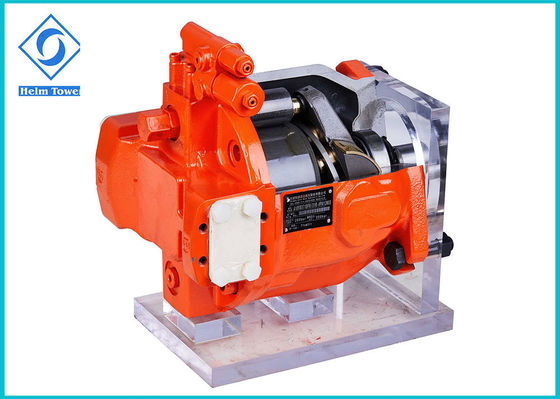

High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty

High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty

  • High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty
  • High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty
  • High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty
High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty
Product Details:
Place of Origin: Ningbo China
Brand Name: Helm Tower
Certification: ISO9001
Model Number: Rexroth A10V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Package: Wooden Case Certification: ISO9001
Warranty: 1 Year Product Name: Hydraulic Piston Pump
Power: Hydraulic Speed: High Speed
Usage: Construction Machinery Color: According To Customer Demand
Piston Pump: Rexroth Piston Pump Model Number: A10V(S)O 16/28/45/71/100/140
MOQ: 1 Set
High Light:

axial piston pump

,

radial piston pump

Chinese A10V Series Hydraulic Piston Pumps and parts Wholesale factory



Application & Features---------------------------------------------------------------
The A10VSO range of variable displacement piston pump is designed for use in open circuit
hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.

Following are the design and performance, advantage of this product.
1.The product supports ISO or SAE flange mounting and also support UNC thread system.
2.It has two drainage ports on the housing , and superior suction performance.

High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty 0


Specification data:



Type A10VSO16 A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Sizes 18 18 28 45 71 100 140
Displacement Vg max cm3 18 18 28 45 71 100 140
Max speed nmax rpm 3300 3300 3000 2600 2200 2000 1800
Max. flow In nmax qv L/min 59.4 59.4 84 117 156 200 252
in 1500 r/min 27 27 42 68 107 150 210
(¦¤p=280bar) in nmax Pmax Kw 27.7 27.7 39 55 73 93 118
Max. power in 1500 r/min 12.6 12.6 20 32 50 70 98
(¦¤p=280bar) in Vg max Tmax Nm 80.1 80.1 125 200 316 445 623
Max. torque
Weight m Kg 12 12 15 21 33 45 60





High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty 1









High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty 2







High Speed Hydraulic Piston Pump And Parts ISO9001 With 1 Year Warranty 3
