| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MSE18 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Type: | Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed Range: | 0-90 R/min | Torque Range: | 7650-9200 N. M |
| Rated Pressure: | 25MPa | Max Pressure: | 40MPa |
| High Light: | radial piston hydraulic motor,axial piston hydraulic motor |
||

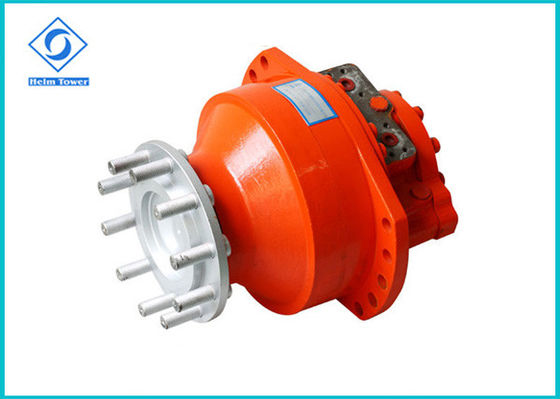

Poclain MSE18 Hydraulic Piston Motor With Low Speed High Torque Radial
Features:
MS18 Hydraulic Piston Motor:
Low speed Large torque Hydraulic motor,
Radial piston type,
Adopt Imported Bearing and Oil Seal,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Displacement Diagram:
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Consturction Machinery: Backhoe Loader, Explosion - Proof Fprklift, Forklift
Mining Machinery: Mini Road Header, Heavy Duty Handing Car, Coal Mine Drill
Marine Machinery: Wildlass, Crane
MS18 Connection Dimension
High precision testing facilities and experienced inspectors.
