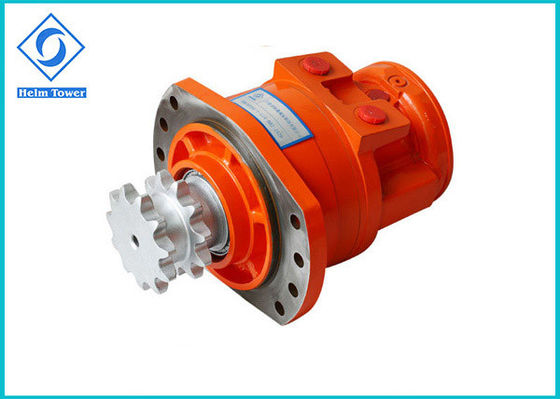

MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely

MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely

  • MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely
  • MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely
  • MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely
MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MCR05
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-220 R/min Torque: 1419-2802 N.m
Rated Pressure: 25 MPa Max. Pressure: 40 MPa
High Light:

radial piston hydraulic motor

,

axial piston hydraulic motor

MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely



Features:



MCR05 Radial piston hydraulic motor

Incurve radial piston type hydraulic motor

Could replace Rexroth same series hydraulic motor perfectly
Designed in control modules,combine freely
High efficiency,High pressure, low noise
Radial piston,Low speed,High torque



Model sample: HMCR05-0-1-A05-2A50-0000



Type MCR05-380 MCR05-470 MCR05-520 MCR05-565 MCR05-680 MCR05-750
Displacement(ml/r) 380 470 520 565 680 750
Continuous output power(kw) 29 29 29 29 35 35
Differential pressure 10Mpa torque(Nm) 604 748 827 899 1082 1194
Rated torque(Nm) 1419 1756 1942 2111 2540 2802
Pressure rating(Mpa) 25 25 25 25 25 25
Max. pressure(Mpa) 40 40 40 40 40 40
Max. speed(rpm) 220 220 220 220 220 170



Output selectiondetailtopsidefrontbrake





MCR05 Applications:



Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill

Engineering Machinery:Skid Steer Loader,Break Machine,





MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely 6MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely 7




MCR05 Connection Dimension



MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely 8


 Motor Test Room



MCR05 Hydraulic Piston Motor Designed In Control Modules Combine Freely 9
