| Place of Origin: | China |
| Brand Name: | Helm Tower |
| Certification: | ISO |
| Model Number: | HDC50 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export plywood case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100pcs per month |
| Model: | HDC50 | Max. Pressure: | 31.5 Mpa |
|---|---|---|---|
| Color: | Customized | Mounting Blacket: | Without |
| Width: | 1350 Mm | Teeth: | 48 Pieces |
| Displacement: | 3500 Ml/r; 4008 Ml/r; 4997 Ml/r; 6011 Ml/r | Max. Power: | 140 Kw |
| Rated Pressure: | 25 Mpa | Max. Torque: | 27000 N.m |
| Speed Range: | 92-148 Rpm | Weight: | 1500KGS |
| Suitable Range: | Excavator 35-45 Ton | ||
| High Light: | rotary drum cutter,hydraulic cutter head for excavator |
||

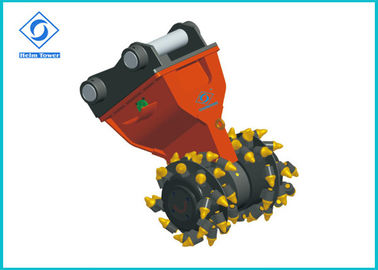

Low Noise Drum Cutter For Excavator , Flexible Hydraulic Rotary Cutter HDC50
Features:
Hydraulic Rotary Drum Cutter:
1) Low shake, low noise, low cost.
2) Construction safety, high efficiency, small particle milling dug directly when the backfill.
3) Flexible, according to operating environment, the replacement the different milling dig cutter, milling ditch dug round rock saws disk, etc.Replacement is simple and convenient.
4) Simple installation and maintenance of economic, efficient alternative to the bucket, hammer and other tools, great fun and a strong feeling of power to the new are under construction.
Specification:
|
Code
|
HDC50-7
|
HDC50-8
|
HDC50-0
|
HDC50-1
|
|
Displacement(m/r)
|
3500
|
4008
|
4997
|
6011
|
|
Max.power(KW)
|
140
|
140
|
140
|
140
|
|
Rated pressure(MPa)
|
25
|
25
|
25
|
25
|
|
Max pressure(MPa)
|
31.5
|
31.5
|
31.5
|
31.5
|
|
Rated torque N.m(25MPa)
|
12500
|
14300
|
17800
|
21500
|
|
Max torque N.m(31.5MPa)
|
15760
|
18000
|
22500
|
27000
|
|
Rated speed(rpm)
|
80
|
80
|
63
|
50
|
|
Max speed(rpm)
|
148
|
138
|
111
|
92
|
|
Teeth number
|
60
|
|||
|
Weight(Kg)
|
1800
|
|||
|
Suitable range
|
Suitable Excavator 35-60 ton
|
|||
Applications:
1) Cutting of trenches and shafts in hard ground.
2) Trimming of concrete and asphalt.
3) Trimming the surface of secant bored piles.
4) Cutting of tunnel profiles.
5) Any kind of rock excavation.
6) Removing stumps and roots of trees.
