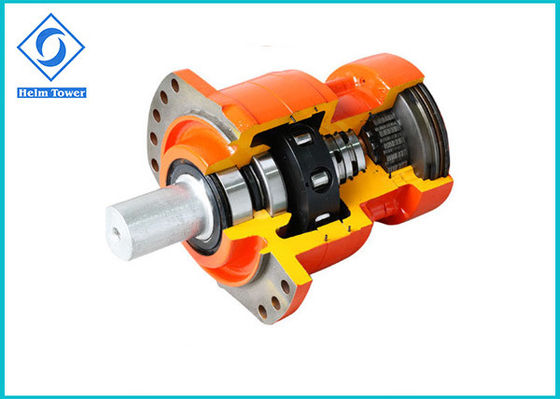

Customized Radial Piston Motor
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS08
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-170 R/min Torque: 2343-3490 N.m
Rated Pressure: 25 MPa Max. Pressure: 40 MPa
High Light:

radial piston hydraulic motor


industrial hydraulic motor


Poclain MS08 Hydraulic Piston Motor Low Noise Level High Duty Roller Bearing




MS08 series hydraulic motor:


This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.



MS08 Displacement Diagram




MS08-8 MS08-9 MS08-0 MS08-1 MS08-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 627 313 702 351 780 390 857 428 934 467
Max power(kw) 36 24 36 24 36 24 36 24 36 24

Pressure discrepancy

10MPa Torque (N.m)

937 459 1049 514 1166 571 1281 628 1396 684
Rated torque(N.m) 2343 2623 2914 3202 3490
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 70 70 70 65 65
Speed range(r/min) 0-170 0-170 0-170 0-155 0-140

Customized Radial Piston Motor 0

Customized Radial Piston Motor 1





Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.

Farming Machinery: Spray Machine.

Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.

Special Vehicles: Fire Engine.

Forest Machinery: Stumper, Loader, Forest Felling Machine.


Customized Radial Piston Motor 2Customized Radial Piston Motor 3


MS08 Connection Dimension

Customized Radial Piston Motor 4



High precision testing facilities and experienced inspectors.

Customized Radial Piston Motor 5
