| Place of Origin: | Ningbo |
| Brand Name: | Helm Tower |
| Certification: | ISO 9001 |
| Model Number: | MS35 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Type: | Piston Motor | Color: | Customized |
|---|---|---|---|
| Speed Range: | 0-140 R/min | Torque Range: | 8000-13800 N. M |
| Rated Pressure: | 25MPa | Max Pressure: | 31.5 MPa |
| High Light: | hydraulic track drive motor,skid steer hydraulic motor |
||

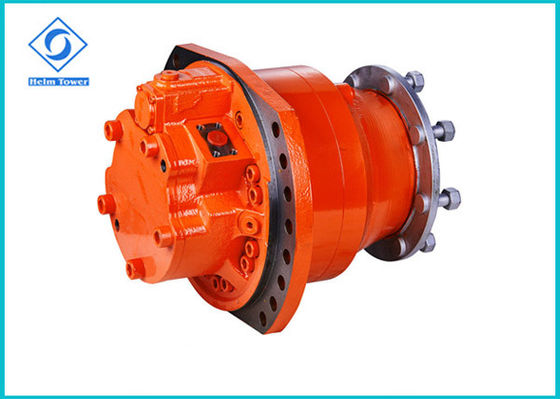

Credible Design Hydraulic Drive Motor Bear High Pressure Light Weight
Features:
MS35 Series Hydraulic Motor
1.radial piston design.
2.higher output torques,lower output speed,smoother output speed at low speeds.
3.optimized and modular design capable of delivering high performance.
4.highly efficient at any speed or operating pressure.
5.withstand the most extreme operating conditions and require very little maintenance.
**IMPORTANT INFORMATION**
As with any hydraulic system, proper flushing of the system is crucial to the system performing at its maximum efficiency. Before installation, make sure all lines, filters, and reservoirs are flushed, cleaned and properly inspected or replaced before installing knew hydraulic pump, motor or transmission.
MS35 Displacement Diagram
| Code |
HMS35
|
|||
| Displacement Group |
7
|
9
|
0
|
2
|
| Displacement(ml/r) |
2439
|
3143
|
3494
|
4198
|
| Theoretical torque at 10MPa(N.m) |
3878
|
4997
|
5555
|
6675
|
| Rated speed(r/min) |
100
|
80
|
63
|
63
|
| Rated pressure(MPa) |
25
|
25
|
25
|
25
|
| Rated torque(N.m) |
8000
|
10300
|
11450
|
13800
|
| Max.pressure(MPa) |
31.5
|
31.5
|
31.5
|
31.5
|
| Max.torque(N.m) |
9850
|
12700
|
14150
|
17000
|
| Speed range(r/min) |
0-140
|
0-140
|
0-130
|
0-110
|
| Max.power(kW) | Standard displacement is110kW,variable displacement priority rotation 73kW,no priority is 55kW | |||
Applications:
MS35 Connection Dimension
High precision testing facilities and experienced inspectors.
