| MOQ: | Negotiation |
| Price: | Negotiable |
| Standard Packaging: | Standard Export Wooden Case |
| Delivery Period: | 7-15 working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 300 units per month |

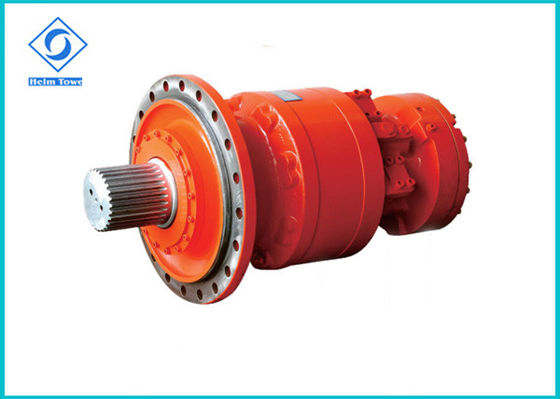

Low - Wear Design Slow Speed Hydraulic Motors High Mounting Flexibility
Features:
MS83 HYDRAULIC PISTON MOTOR
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency
3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,
5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
Displacement diagram:
| Displacement Group | 8 | 0 | 2 |
| Displacement(ml/r) | 6679 | 8328 | 10019 |
| Theoretical torque a 10Mpa(N.m) | 10620 | 13242 | 15930 |
| Rated speed(r/min) | 63 | 50 | 40 |
| Rated pressure(Mpa) | 25 | 25 | 25 |
| Rate torque(N.m) | 21700 | 27050 | 32550 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 27050 | 33750 | 40600 |
| Speed range(r/min) | 0-65 | 0-52 | 0-43 |
| Max power(kW) | standard displacement is 220kw,variable displacement priority rotation 135kw | ||
Applications:
Construction Machinery
Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment
Mining Machinery
Heavy duty handling car,coal mine drill
Marine Machinery
Marine Deck Crane, Gantry Crane Equipment.
MS83 Connection Dimension
High precision testing facilities and experienced inspectors.
|
|
