Place of Origin: | Ningbo China |
Brand Name: | Helm Tower |
Certification: | ISO9001 |
Model Number: | Rexroth A4V |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case |
Delivery Time: | 3 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000 pieces per month |
Package: | Wooden Case | Certification: | ISO9001 |
---|---|---|---|
Warranty: | 1 Year | Product Name: | Hydraulic Piston Pump |
Power: | Hydraulic | Speed: | High Speed |
Usage: | Construction Machinery | Color: | According To Customer Demand |
High Light: | axial piston pump,variable displacement piston pump |

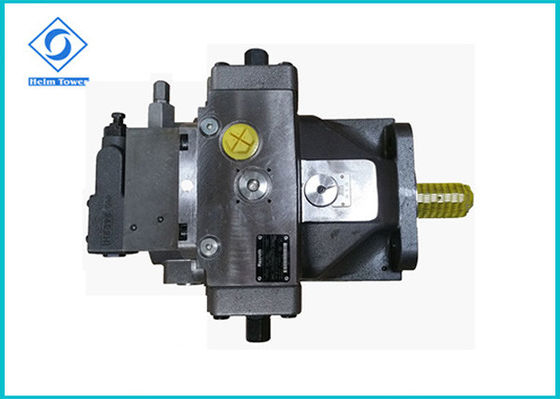

Construction Variable Piston Pump Rexroth A4V , Light Weight High Pressure Piston Pump
Features:
Technical information
Models: A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 A4VSO750
Rexroth Axial piston variable pump A4VSO Series
Nominal pressure 350 bar
Maximum pressure 400 bar
Open circuit
-Variable pump with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open circuit
-For use in mobile and stationary applications
-The flow is proportional to the drive speed and displacement.
-The flow can be infinitely varied by adjusting the bent axis.
-Wide selection of control devices
-Compact, robust pump with long service life
Specification:
Size | 40 | 71 | 125 | 180 | 250 | |||
Nominal pressure | p N | bar | 350 | 350 | 350 | 350 | 350 | |
Peak pressure | p max | bar | 400 | 400 | 400 | 400 | 400 | |
Displacement | V g max | cm³ | 40 | 71 | 125 | 180 | 250 | |
Speed 1) | n max | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | |
Flow | at n max | q V max | l/min | 104 | 156 | 225 | 324 | 375 |
Power | p = 350 bar | P max | kW | 61 | 91 | 131 | 189 | 219 |
Torque | p = 350 bar | T max | Nm | 223 | 395 | 696 | 1002 | 1391 |
Weight (approx.) | m | kg | 39 | 53 | 88 | 102 |
184 |
Size | 355 | 500 | 750 | 1000 | ||||
Nominal pressure | p N | bar | 350 | 350 | 350 | 350 | ||
Peak pressure | p max | bar | 400 | 400 | 400 | 400 | ||
Displacement | V g max | cm³ | 355 | 500 | 750 | 1000 | ||
Speed 1) | n max | rpm | 1500 | 1320 | 1200 | 1000 | ||
Flow | at n max | q V max | l/min | 533 | 660 | 900 | 1000 | |
Power | p = 350 bar | P max | kW | 311 | 385 | 525 | 583 | |
Torque | p = 350 bar | T max | Nm | 1976 | 2783 | 4174 | 5565 | |
Weight (approx.) | m | kg | 207 | 320 | 460 | 605 |
1) The values are valid at an absolute pressure of 1 bar in suction port S.
DR (RE 92060) | DP (RE 92060) | FR (RE 92060) | DFR (RE 92060) |
Pressure controller | Pressure controller for parallel operation | Flow controller | Pressure and flow controller |
LR2 (RE 92064) | LR3 (RE 92064) | M (RE 92072) | EM (RE 92072) |
Power controller | Remote-controlled power controller | Manual control | Electromotive control |
HS/HS4 (RE 92076) | EO1/EO2 (RE 92076) | HD (RE 92080) | LR2N (RE 92064) | DFE1 (RE 92088) |
Hydraulic displacement control (servo-/proportional valve) | Hydraulic displacement control (proportional valve) | Hydraulic control, pilot pressure-related | Power controllers, pilot pressure-related | Electrohydraulic control system |
V g = Displacement |
p B = Operating pressure |
p St = Control pressure |
s = Actuator travel |
U = Control voltage |
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
