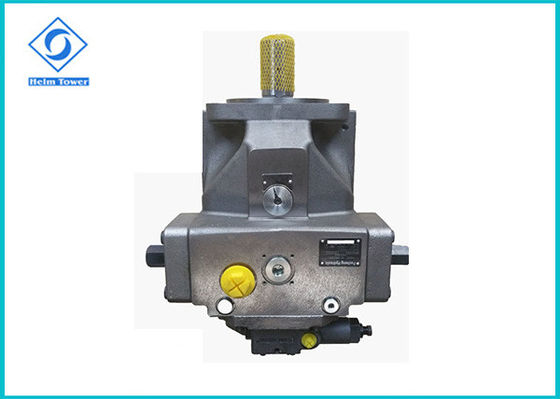

High Reliability Hydraulic Piston Pump With High Power Density Ratio

High Reliability Hydraulic Piston Pump With High Power Density Ratio

  • High Reliability Hydraulic Piston Pump With High Power Density Ratio
  • High Reliability Hydraulic Piston Pump With High Power Density Ratio
  • High Reliability Hydraulic Piston Pump With High Power Density Ratio
  • High Reliability Hydraulic Piston Pump With High Power Density Ratio
  • High Reliability Hydraulic Piston Pump With High Power Density Ratio
High Reliability Hydraulic Piston Pump With High Power Density Ratio
Product Details:
Place of Origin: Ningbo China
Brand Name: Helm Tower
Model Number: Rexroth A4V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Certification: ISO9001 Package: Wooden Case
Warranty: 1 Year Product Name: Hydraulic Piston Pump
Power: Hydraulic Speed: High Speed
Usage: Construction Machinery Color: According To Customer Demand
High Light:

axial piston pump

,

variable displacement piston pump

High Reliability Hydraulic Piston Pump With High Power Density Ratio



Features:



Technical information

Models: A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 A4VSO750

Rexroth Axial piston variable pump A4VSO Series

Nominal pressure 350 bar

Maximum pressure 400 bar

Open circuit



-Variable pump with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open circuit

-For use in mobile and stationary applications

-The flow is proportional to the drive speed and displacement.

-The flow can be infinitely varied by adjusting the bent axis.

-Wide selection of control devices

-Compact, robust pump with long service life



Size 40 71 125 180 250
Nominal pressure p N bar 350 350 350 350 350
Peak pressure p max bar 400 400 400 400 400
Displacement V g max cm³ 40 71 125 180 250
Speed 1) n max rpm 2600 2200 1800 1800 1500
Flow at n max q V max l/min 104 156 225 324 375
Power p = 350 bar P max kW 61 91 131 189 219
Torque p = 350 bar T max Nm 223 395 696 1002 1391
Weight (approx.) m kg 39 53 88 102

184





Size   355 500 750 1000
Nominal pressure p N bar 350 350 350 350
Peak pressure p max bar 400 400 400 400
Displacement V g max cm³ 355 500 750 1000
Speed 1) n max rpm 1500 1320 1200 1000
Flow at n max q V max l/min 533 660 900 1000
Power p = 350 bar P max kW 311 385 525 583
Torque p = 350 bar T max Nm 1976 2783 4174 5565
Weight (approx.)   m kg 207 320 460 605



1) The values are valid at an absolute pressure of 1 bar in suction port S.



DR (RE 92060) DP (RE 92060) FR (RE 92060) DFR (RE 92060)
Pressure controller Pressure controller for parallel operation Flow controller Pressure and flow controller





LR2 (RE 92064) LR3 (RE 92064) M (RE 92072) EM (RE 92072)
Power controller Remote-controlled power controller Manual control Electromotive control





HS/HS4 (RE 92076) EO1/EO2 (RE 92076) HD (RE 92080) LR2N (RE 92064) DFE1 (RE 92088)
Hydraulic displacement control (servo-/proportional valve) Hydraulic displacement control (proportional valve) Hydraulic control, pilot pressure-related Power controllers, pilot pressure-related Electrohydraulic control system





V g = Displacement
p B = Operating pressure
p St = Control pressure
s = Actuator travel
U = Control voltage

A4VSO.jpgA4VSO (2).jpgA4VSO (3).jpgRexroth-A4VSO-80High Reliability Hydraulic Piston Pump With High Power Density Ratio 4

REXROTH

pumps

Applications:

Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
