| Place of Origin: | Ningbo China |
| Brand Name: | Helm Tower |
| Certification: | ISO9001 |
| Model Number: | MS05 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3 days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 5000 pieces per month |
| Package: | Wooden Case | Certification: | ISO9001 |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Lightweight Hydraulic Piston MOTOR |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According To Customer Demand |
| Highlight: | axial piston pump,radial piston pump |
||

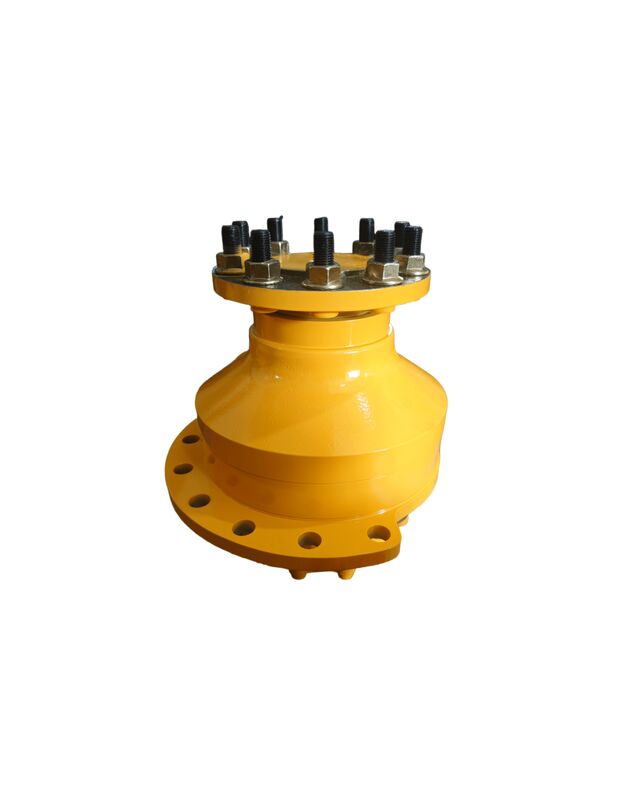

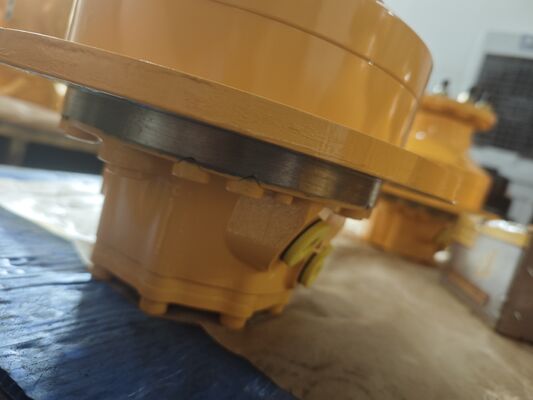

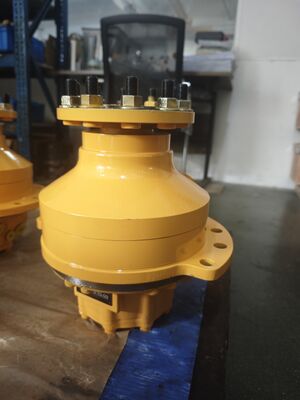

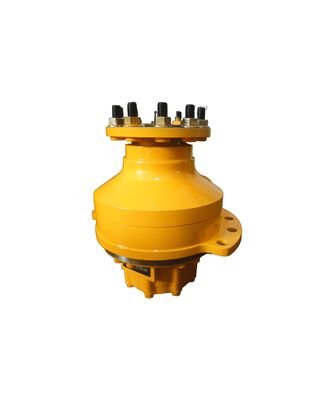

Lightweight Hydraulic Piston MOTOR
Designed in control modules, combine freely
High efficiency, High pressure, low speed motors
|
Type |
05-380 |
05-470 |
05-520 |
05-565 |
05-680 |
05-750 |
|
Displacement(ml/r) |
380 |
470 |
520 |
565 |
680 |
750 |
|
Continuous output power(kw) |
29 |
29 |
29 |
29 |
35 |
35 |
|
Differential pressure 10Mpa torque(Nm) |
604 |
748 |
827 |
899 |
1082 |
1194 |
|
Rated torque(Nm) |
1419 |
1756 |
1942 |
2111 |
2540 |
2802 |
|
Pressure rating(Mpa) |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max. pressure(Mpa) |
40 |
40 |
40 |
40 |
40 |
40 |
|
Max. speed(rpm) |
220 |
220 |
220 |
220 |
220 |
170 |
