| Place of Origin: | CHINA |
| Brand Name: | Helm Tower |
| Certification: | IS09001 |
| Model Number: | MCR03 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 PCS per month |
| Rated Pressure: | 25Mpa | Max Pressure: | 31.5Mpa |
|---|---|---|---|
| Warranty: | 1 Year | Certificate: | ISO9001 |
| Colour: | Customized | Condition: | New |
| High Light: | Low Noise Hydraulic Piston Motor,Replacement Rexroth Low Speed Hydraulic Motor,Low Speed Rexroth Drive Motor |
||

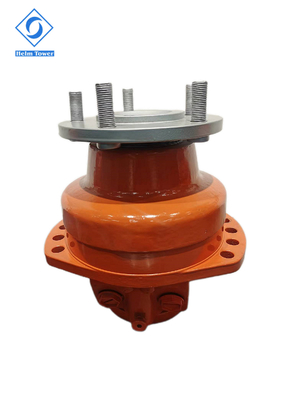

Replacement Rexroth HMCR series Low Speed High Torque Hydraulic Motor MCR03 Low noise
Features:
Hydraulic Motor MCR03/MCRE03
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
MCR03/MCRE03/MCR05/MCRE05/MCR10/MCRE10Hydraulic Motor:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.
MCR03 Series Displacement Diagram:
| Type | MCR03-225 | MCR03-255 | MCR03-280 | MCR03-325 | MCR03-365 | MCR03-400 | ||||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 255 | 125 | 255 | 125 | 280 | 140 | 325 | 160 | 365 | 180 | 400 | 200 | |
| Max power(kw) | 18 | 12 | 18 | 12 | 18 | 12 | 22 | 14 | 22 | 14 | 22 | 14 |
| Pressure discrepancy 10MPa Torque | 405 | 202 | 405 | 202 | 445 | 222 | 517 | 258 | 580 | 290 | 636 | 318 |
| Rated compressor(MPa) | 25 | |||||||||||
| Max Torque(N.m) | 1386 | 1570 | 1760 | 1875 | 2105 | 2307 | ||||||
| (Full displacement) | ||||||||||||
| Max pressure(MPa) | 40 | 40 | 40 | 40 | 40 | 40 | ||||||
| Rated speed (r/min) | 320 | 280 | 260 | 240 | 240 | 240 | ||||||
| Speed range(r/min) | 10-400 | 10-360 | 10-330 | 10-310 | 10-280 | 10-260 | ||||||
Applications:
Mining Machinery: Coal Winning Machine, Road Header,Scraper,Heavy Duty Handling Car,Coal Mine Drill
Engineering Machinery: Skid Steer Loader,Down-the-hole Drill,Rotary Drill,Mini and Midi Excavators,Mixer Truck, Cutting Machine
Marine Machinery: Gantry Crane
