| Place of Origin: | CHINA |
| Brand Name: | Helm Tower Hydraulic |
| Certification: | ISO9001 |
| Model Number: | MCR10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 500usd |
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 Year | Color: | Follow Customer's Requirement |
|---|---|---|---|
| Pressure: | High Pressure | Delivery Time: | 5-7 Days |
| Package: | Wooden Case | Application: | Construction Machinery, Drill Machinery |
| Material: | Cast Iron | Rated Pressure: | 25 Mpa |
| Max Pressure: | 31.5 Mpa | Usage: | Low Speed High Torque Motor |
| High Light: | mcre10 hydraulic piston motor,mcr10 hydraulic piston motor,hydraulic rexroth piston motor |
||

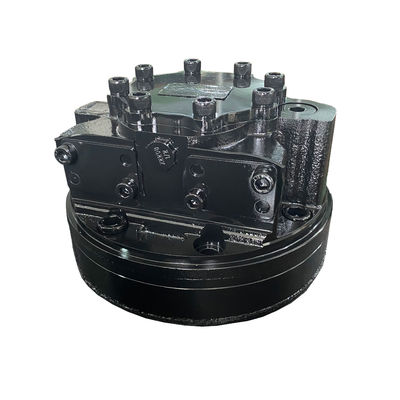

Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
MCR10 Application:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine
