| Brand Name: | Helm Tower |
| Certification: | IS09001 |
| Model Number: | MS50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden case |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100sets per month |
| Place Of Origin: | Ningbo,China | Rated Pressure: | 25Mpa |
|---|---|---|---|
| Max Pressure: | 31.5Mpa | Warranty: | 12month |
| Certificate: | ISO9001 | Colour: | Customer's Request |
| Condition: | New | Product Name: | Poclian MS MSE Motor |
| Type: | Hydraulic Motors | ||
| High Light: | Forging Manipulator Poclain Wheel Motors,25Mpa Hydraulic Wheel Drive Motor,Poclian MS Hydraulic Wheel Drive Motor |
||

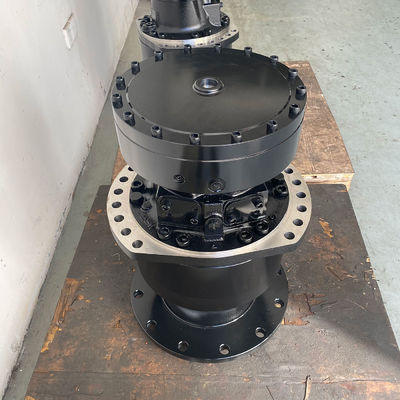

Poclain MS50 Drive Radial Piston Hydraulic Wheel Motor
Poclain MS50 Hydraulic Motor Description ( Features )
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Displacement Group | 7 | 8 | 0 | 2 |
| Displacement(ml/r) | 3500 | 4008 | 4997 | 6011 |
| Theoretical torque a 10Mpa(N.m) | 5565 | 6373 | 7945 | 9557 |
| Rated speed(r/min) | 80 | 80 | 63 | 50 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rate torque(N.m) | 11500 | 13150 | 16400 | 19750 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 14150 | 16250 | 20250 | 24350 |
| Speed range(r/min) | 0-148 | 0-138 | 0-111 | 0-92 |
| Max power(kW) | standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw. | |||
Application:
Construction Machinery
26T Road Roller(MK series),Forging Manipulator,Bucket Wheel Machine,Raise-Bore Machine
Mining Machinery
Heavy duty handling car,coal mine drill
Marine Machinery
Marine Deck Crane, Gantry Crane Equipment.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B
Contact Person: Mr. Helm Tower
Tel: 13567431300
Fax: 86-574-86369630
