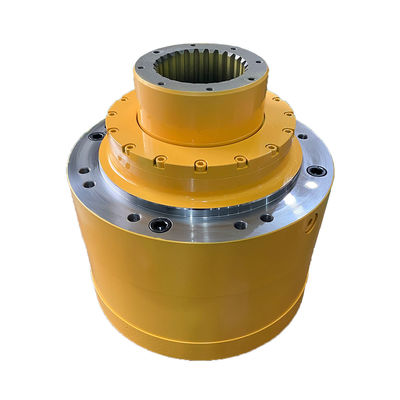

Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1

Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1

Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1
video
Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS83
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed Range: 0-65 R/min Torque Range: 21700-32550 N. M
Rated Pressure: 25MPa Max Pressure: 31.5 MPa
High Light:

65r/min Piston Type Hydraulic Motor

,

MS83-2-111-R83-6AB1

,

Poclain Hydraulic Motors Ms Series

Poclain MS83-2-111-R83-6AB1 Internal Spline Shaft Hydraulic Motor

Features:

MS83 HYDRAULIC PISTON MOTOR
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency

3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,

5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output

 Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1 0
Displacement diagram:


Displacement Group 8 0 2
Displacement(ml/r) 6679 8328 10019
Theoretical torque a 10Mpa(N.m) 10620 13242 15930
Rated speed(r/min) 63 50 40
Rated pressure(Mpa) 25 25 25
Rate torque(N.m) 21700 27050 32550
Max pressure(Mpa) 31.5 31.5 31.5
Max torque(N.m) 27050 33750 40600
Speed range(r/min) 0-65 0-52 0-43
Max power(kW) standard displacement is 220kw,variable displacement priority rotation 135kw



Applications:

Construction Machinery
Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment
Mining Machinery
Heavy duty handling car,coal mine drill
Marine Machinery
Marine Deck Crane, Gantry Crane Equipment.

Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1 1Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1 2

MS83 Connection Dimension


Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1 3




High precision testing facilities and experienced inspectors.
Poclain Hydraulic Motors Ms Series MS83-2-111-R83-6AB1 4
