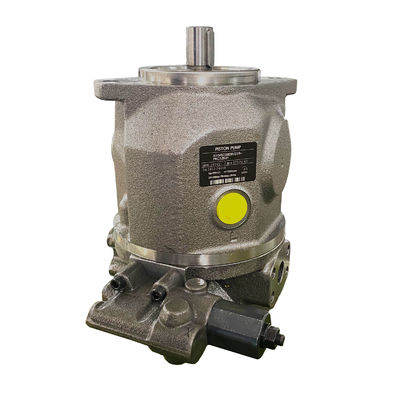

Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R

Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R

    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
    • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R
  • Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R

    Product Details:

    Place of Origin: China
    Brand Name: Helm Tower
    Certification: ISO9001:2008
    Model Number: A10VSO71DFR

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: wooden case
    Delivery Time: 3-7 days
    Payment Terms: L/C, T/T
    Supply Ability: 200 sets 1 moth
    Contact Now
    Detailed Product Description
    Material: Iron Warranty: 1 Year
    Color: Customer Required Performance: Replace Rexroth Originals Very Well
    High Light:

    axial piston pump

    ,

    radial piston pump

    China Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R



    Features:
    The A10VSO range of variable displacement piston pump is designed for use in open circuit
    hydraulic system, and comes with swash plate design. proportional to the drive speed and displacement, the flow can be smootly adjusted by regulating the swash plate position.

    Following are the design and performance, advantage of this product.
    1.The product supports ISO or SAE flange mounting and also support UNC thread system.
    2.It has two drainage ports on the housing , and superior suction performance.



    Specification:



    Model A10V(S)O16/18 A10V(S)O28 A10V(S)O45 A10V(S)O71 A10V(S)O100 A10V(S)O140
    Displacement (ml/r) 18 28 45 71 100 140
    Direction of rotation (view from shaft end) R: Clockwise L:Counter Clockwise
    Rated speed (r/min) 2200 2000 1500 1500 1500 1500
    Max. speed (r/min) 3300 3000 2600 2200 2000 1800
    Inlet pressure (MPa) 0.08-3
    Rated pressure (MPa) 28
    Max pressure (MPa) 35
    Recommended oil L-HM46(SUMMER) L-HM32(WINTER)
    Housing pressure (MPa) <=0.2
    Working mode open circuit system


    Model Code
    Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R 0



    Iron Material Hydraulic Piston Pump Rexroth A10V Series A10VSO28DR31R 1
